352-001 · Question #21

Refer to the exhibit. All routers in this network are configured to place all interfaces in OSPF area 5. R3 is the designated router on the 10.1.5.0/24 network. If you examine the OSPF database on R4,

The correct answer is A. a connection to 10.1.5.0/24 and links to R3, R2, and R1. The Designated Router generates a Type 2 Network LSA for its multi-access segment that lists the network and all fully adjacent routers attached to that segment, including the DR itself.

Layer 3 Control Plane

Question

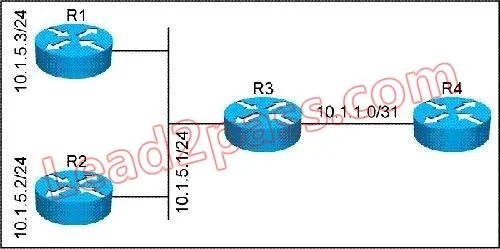

Refer to the exhibit. All routers in this network are configured to place all interfaces in OSPF area 5. R3 is the designated router on the 10.1.5.0/24 network. If you examine the OSPF database on R4, what would the network (type 2) LSA, generated by R3, contain?

Exhibit

352-001 question #21 exhibit

Options

  • Aa connection to 10.1.5.0/24 and links to R3, R2, and R1
  • Ba connection to 10.1.5.0/24 and links to R2 and R1
  • Cconnections to 10.1.5.0/24 and 10.1.1.0/31
  • Dno connections, R3 does not generate a network (type 2) LSA in this network

How the community answered

(30 responses)
  • A
    83% (25)
  • B
    3% (1)
  • C
    10% (3)
  • D
    3% (1)

Why each option

The Designated Router generates a Type 2 Network LSA for its multi-access segment that lists the network and all fully adjacent routers attached to that segment, including the DR itself.

Aa connection to 10.1.5.0/24 and links to R3, R2, and R1Correct

R3, as the DR on 10.1.5.0/24, generates a Network LSA describing that transit network and listing every router that has formed a full adjacency with it on that segment. The DR includes itself in the attached-router list alongside R2 and R1, which is how the Type 2 LSA correctly represents all participants on the multi-access network.

Ba connection to 10.1.5.0/24 and links to R2 and R1

This option omits R3 itself; the DR is always included as an attached router in the Type 2 LSA it originates, since the DR is also connected to the segment it is describing.

Cconnections to 10.1.5.0/24 and 10.1.1.0/31

A Type 2 LSA covers exactly one multi-access transit segment; subnets such as 10.1.1.0/31 are point-to-point links described in separate Router (Type 1) LSAs and are never bundled into a Network LSA.

Dno connections, R3 does not generate a network (type 2) LSA in this network

R3 is the elected DR on 10.1.5.0/24, and OSPF mandates that the DR generate a Network LSA for every multi-access segment on which it holds that role.

Concept tested: OSPF Type 2 Network LSA generated by the DR

Source: https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/7039-1.html

Topics

#OSPF Type 2 LSA#designated router#OSPF database#network LSA
