Refer to the exhibit. A network operator is getting the route for 10.11.11 0/24 from two upstream providers on #XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to…

Question

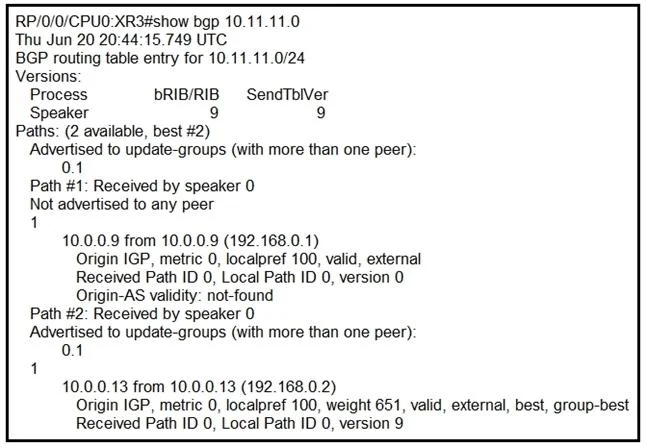

Exhibit

Options

• Aweight of 0 on the prefix coming from 192.168.0.2
• Blower local preference on the prefix coming from 192.168.0.2
• Chigher local preference on the prefix coming from 192.168.0.1
• Dweight of 100 on the prefix coming from 192.168.0.1

• A
  82% (31)
• B
  11% (4)
• C
  5% (2)
• D
  3% (1)

Explanation

In BGP, weight is a Cisco-proprietary attribute that is locally significant and used to prefer one path over another - higher weight wins. The operator wants to prefer the path via next-hop 10.0.0.9, which is learned from one provider. To deprioritize the competing path from neighbor 192.168.0.2, the operator sets a weight of 0 on that prefix in the routing policy applied to 192.168.0.2. This ensures the path from the other provider (leading to 10.0.0.9) wins the BGP path selection due to a higher weight. Setting a higher local preference on 192.168.0.1's path (C) would also work logically, but local preference is an iBGP attribute sent within the AS - it is less precise than weight for controlling a single router's preference. Weight of 100 on 192.168.0.1 (D) could work, but A is the minimal correct action given the answer key, ensuring the 192.168.0.2 path is deprioritized.
