Question

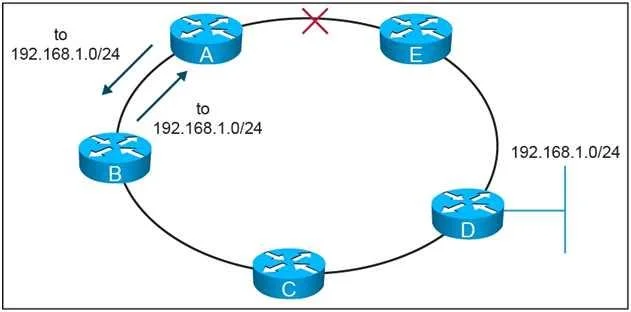

Refer to the exhibit. On this MPLS-based networking ring, links have failed between router A and router E. These failures formed microloops while the network converged, when A forwarded traffic to B, but B forwarded it back to A. Which technology is the simplest solution to avoid microloops without enabling a new protocol in the network?

Exhibit

352-001 question #453 exhibit

Options

  • ALoop-Free Alternate
  • BRemote Loop-Free Alternate
  • CIP Fast ReRoute
  • DTE Fast ReRoute

How the community answered

(26 responses)
  • A
    12% (3)
  • B
    58% (15)
  • C
    4% (1)
  • D
    27% (7)

Why each option

Remote LFA (RLFA) provides loop-free coverage for ring topologies by tunneling over existing LDP infrastructure, requiring no new protocol to be enabled.

ALoop-Free Alternate

Standard Loop-Free Alternate is limited to directly connected neighbors as repair nodes; in a ring topology this often leaves nodes on the far side of a failure without a qualifying loop-free alternate.

BRemote Loop-Free AlternateCorrect

Remote LFA extends standard LFA by using existing LDP-signaled tunnels to reach a PQ node beyond the immediate neighbor, giving loop-free repair coverage for destinations that a standard LFA cannot protect - a common gap in ring topologies. Because LDP is already running in an MPLS network, RLFA does not require enabling any new protocol, making it the simplest viable solution.

CIP Fast ReRoute

IP Fast ReRoute is the overarching framework that encompasses both LFA and RLFA; selecting it as an answer does not identify the specific mechanism that solves ring-topology microloops without a new protocol.

DTE Fast ReRoute

TE Fast ReRoute requires a full MPLS Traffic Engineering deployment including RSVP-TE, which constitutes enabling a new protocol and is therefore not the simplest solution.

Concept tested: Remote LFA microloop prevention on MPLS rings

Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_ospf/configuration/xe-16/iro-xe-16-book/iro-remote-lfa.html
