352-001 · Question #178

Refer to the exhibit. In this BGP setup, 10.1.1.0/24 is advertised by AS 400 to its peers. Border routers in AS 100 reset the next-hop router to themselves. R2, R3, and R4 are route reflector clients

The correct answer is D. R4. BGP route reflectors preserve the next-hop attribute when reflecting routes, so R5 sees the original next-hop set by the border router R4.

Layer 3 Control Plane

Question

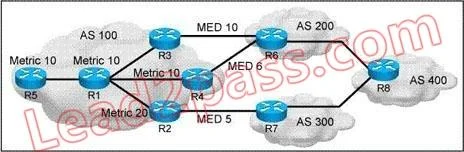

Refer to the exhibit. In this BGP setup, 10.1.1.0/24 is advertised by AS 400 to its peers. Border routers in AS 100 reset the next-hop router to themselves. R2, R3, and R4 are route reflector clients of R1 and R5 is a non-client iBGP peer of R1. What is the BGP next hop on R5 for the address 10.1.1.0/24?

Exhibit

352-001 question #178 exhibit

Options

  • AR1
  • BR2
  • CR3
  • DR4
  • ER6

How the community answered

(21 responses)
  • A
    5% (1)
  • B
    5% (1)
  • C
    10% (2)
  • D
    62% (13)
  • E
    19% (4)

Why each option

BGP route reflectors preserve the next-hop attribute when reflecting routes, so R5 sees the original next-hop set by the border router R4.

AR1

R1 is the route reflector and does not reset the BGP next-hop attribute when reflecting routes to iBGP peers, so R1 would not appear as the next-hop on R5.

BR2

R2 is a route reflector client, not the border router that received the prefix from AS 400 and reset the next-hop, so it would not be the next-hop seen by R5.

CR3

R3 is a route reflector client, not the border router that received the prefix from AS 400 and reset the next-hop, so it would not be the next-hop seen by R5.

DR4Correct

In BGP route reflection, a route reflector (R1) does not modify the next-hop attribute when reflecting routes to clients or non-client iBGP peers. R4, as the border router that received 10.1.1.0/24 from AS 400, reset the next-hop to itself per the configured policy. When R1 reflects this route to R5 (a non-client peer), the next-hop remains R4, making D the correct answer.

ER6

R6 is in an external AS and while it originated the route, the border routers in AS 100 explicitly reset the next-hop to themselves, so R6 would not be the next-hop within AS 100.

Concept tested: BGP route reflector next-hop preservation

Source: https://www.rfc-editor.org/rfc/rfc4456

Topics

#BGP route reflector#iBGP next-hop#route reflector client#next-hop unchanged
