JN0-683 · Question #47
Click the Exhibit button. A VXLAN tunnel has been created between leaf1 and leaf2 in your data center. Referring to the exhibit, which statement is correct?
The correct answer is D. Traffic sent from server1 to server2 will be dropped on leaf1. D is correct because leaf1, the ingress switch, drops the traffic due to lack of EVPN L2 forwarding entry for destination MAC in a different VNI.
Troubleshooting
Question
Click the Exhibit button. A VXLAN tunnel has been created between leaf1 and leaf2 in your data center. Referring to the exhibit, which statement is correct?

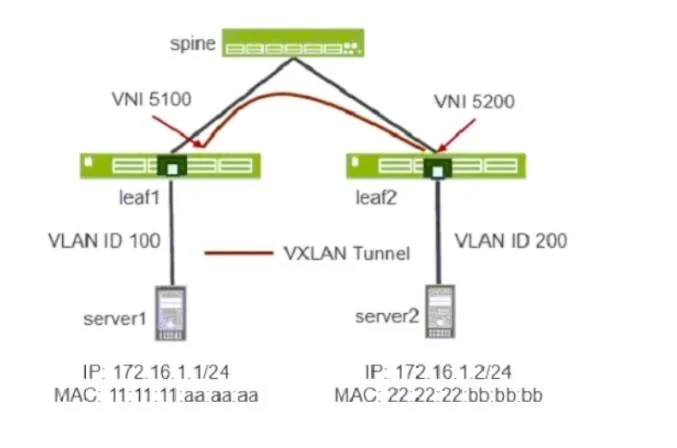

Exhibit
Options
- ATraffic sent from server1 to server2 will be dropped on Ieaf2.
- BTraffic sent from server1 to server2 will be tagged with VLAN ID 100 on Ieaf2 and forwarded to
- CTraffic sent from server1 to server2 will be tagged with VLAN ID 200 on Ieaf2 and forwarded to
- DTraffic sent from server1 to server2 will be dropped on leaf1.
How the community answered
(24 responses)- A4% (1)
- B8% (2)
- C17% (4)
- D71% (17)
Explanation
D is correct because leaf1, the ingress switch, drops the traffic due to lack of EVPN L2 forwarding entry for destination MAC in a different VNI.
Topics
#VXLAN#VLAN mapping#leaf forwarding#traffic drop analysis
Community Discussion
No community discussion yet for this question.
