Referring to the exhibit, which statement is true?

The correct answer is B. An ERB architecture is being used. The configuration provided in the exhibit indicates an EVPN-VXLAN setup with routing instances, VLANs, and associated VXLANs. Specifically, there are routing instances with IRB interfaces (Integrated Routing and Bridging) and associated VLANs, as well as VNI assignments, which…

Overlay Networks

Question

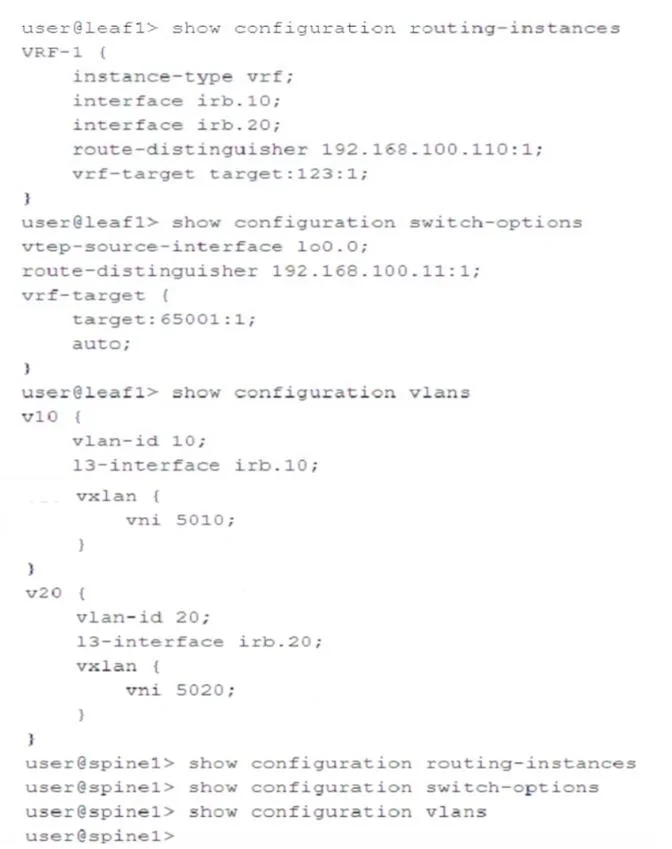

Exhibit

Options

AA PBB-EVPN architecture is being used.
BAn ERB architecture is being used.
CAn OTT architecture is being used.
DA CRB architecture is being used.

How the community answered

(17 responses)

A
18% (3)
B
71% (12)
C
6% (1)
D
6% (1)

Explanation

The configuration provided in the exhibit indicates an EVPN-VXLAN setup with routing instances, VLANs, and associated VXLANs. Specifically, there are routing instances with IRB interfaces (Integrated Routing and Bridging) and associated VLANs, as well as VNI assignments, which are key elements in an Enhanced Routed Bridging (ERB) architecture. This architecture supports both Layer 2 and Layer 3 connectivity with VXLAN for bridging and routing.
