JN0-683 · Question #35
Referring to the exhibit, Host1 (10.1.1.1) if failing to communicate with Host2 (10.1.2.1) in a data center that uses an ERB architecture. What do you determine from the output?
The correct answer is B. The traffic is entering the VXLAN tunnel. The traffic is entering the VXLAN tunnel: This is the most likely cause of the issue, as indicated by the presence of VXLAN (Virtual Extensible LAN) configurations and EVPN (Ethernet VPN) MAC address tables in the exhibit. The communication between Host1 and Host2 may not be…
Question
Referring to the exhibit, Host1 (10.1.1.1) if failing to communicate with Host2 (10.1.2.1) in a data center that uses an ERB architecture. What do you determine from the output?

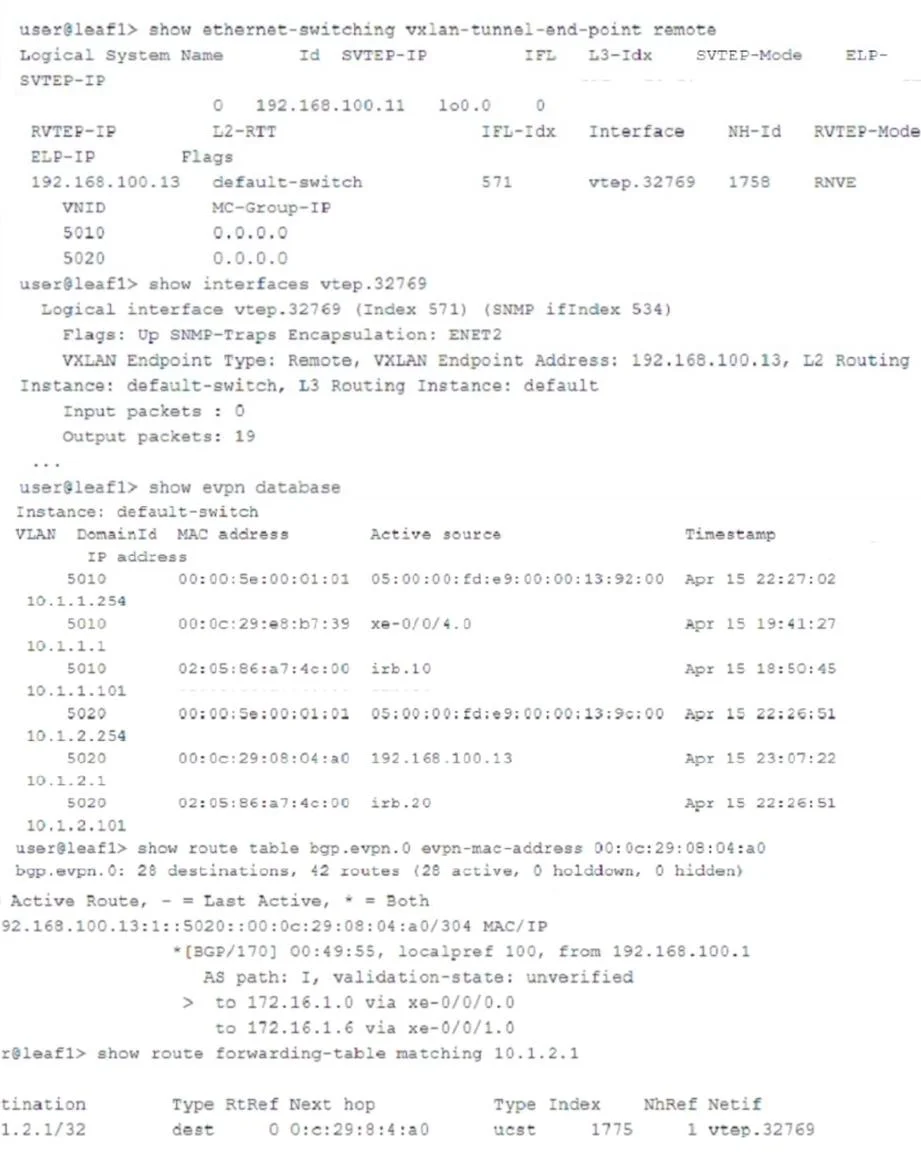

Exhibit
Options
- AThe traffic is failing because load balancing is not configured correctly.
- BThe traffic is entering the VXLAN tunnel.
- CHost1 and Host2 are directly connected to leaf1.
- DThe irb.20 interface is not configured on leaf1.
How the community answered
(35 responses)- A11% (4)
- B83% (29)
- C3% (1)
- D3% (1)
Explanation
The traffic is entering the VXLAN tunnel: This is the most likely cause of the issue, as indicated by the presence of VXLAN (Virtual Extensible LAN) configurations and EVPN (Ethernet VPN) MAC address tables in the exhibit. The communication between Host1 and Host2 may not be properly routed through the VXLAN tunnel, causing the failure.
Topics
Community Discussion
No community discussion yet for this question.
