JN0-683 · Question #48
Click the Exhibit button. You have implemented an EVPN-VXLAN data center. Device server1 must be able to communicate with device server2. Referring to the exhibit, which two statements are correct?…
The correct answer is A. An IRB interface must be configured on spinel and spine2. B. Traffic from server1 to server2 will transit a VXLAN tunnel to spine1 or spine2, then a VXLAN. When routing is done in the spines (CRB model) a IREB must be configured at the spines.
Overlay Networks
Question
Click the Exhibit button. You have implemented an EVPN-VXLAN data center. Device server1 must be able to communicate with device server2. Referring to the exhibit, which two statements are correct? (Choose two.)

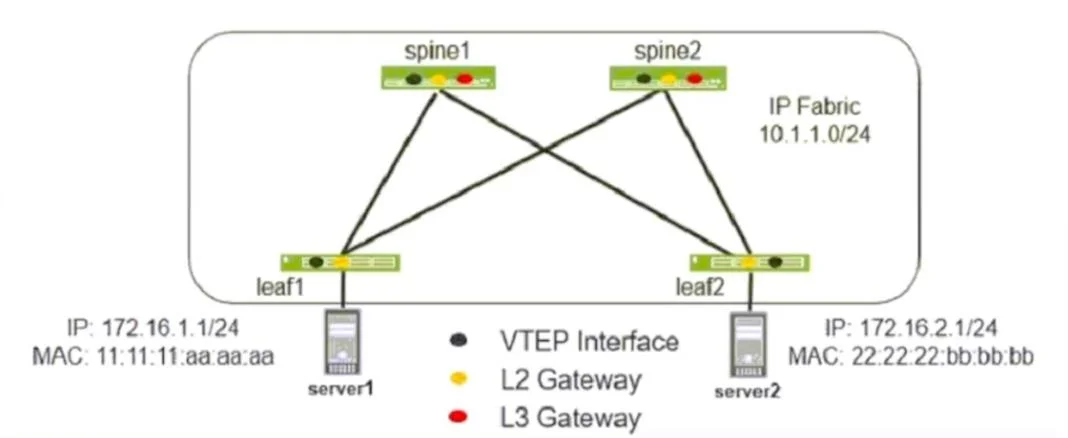

Exhibit
Options
- AAn IRB interface must be configured on spinel and spine2.
- BTraffic from server1 to server2 will transit a VXLAN tunnel to spine1 or spine2, then a VXLAN
- CAn IRB Interface must be configured on leaf1 and Ieaf2.
- DTraffic from server1 to server2 will transit the VXLAN tunnel between leaf1 and leaf2.
How the community answered
(28 responses)- A71% (20)
- C11% (3)
- D18% (5)
Explanation
When routing is done in the spines (CRB model) a IREB must be configured at the spines.
Topics
#CRB architecture#IRB interface#VXLAN traffic path#spine routing
