FCSS_SDW_AR-7.4 · Question #61
Refer to the exhibits. The administrator configured a device blueprint and CLI scripts as shown in the exhibits, to prepare for onboarding FortiGate devices in the company's stores. Later, a…
The correct answer is D. FortiManager updates the configuration of port1, port2, and port5. The three ports might get new. Enforce Device Configuration is enabled and the blueprint applies the provisioning CLI templates. The LAN-interface script sets port1 and port2 to DHCP and assigns a static IP to port5 (using the branch_id variable). Therefore, when FortiManager pushes the blueprint, it updates…
Question

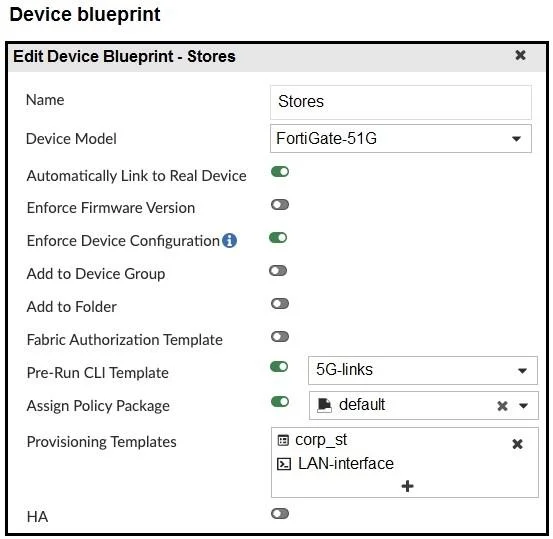

Refer to the exhibits. The administrator configured a device blueprint and CLI scripts as shown in the exhibits, to prepare for onboarding FortiGate devices in the company’s stores. Later, a technician prepares a FortiGate 51G with a basic configuration and connects it to the network. The basic configuration contains the port1 configuration and the minimal configuration required to allow the device to connect to FortiManager. After the device first connects to FortiManager, FortiManager updates the device configuration. Based on the exhibits, which actions does FortiManager perform?
Exhibits
Options
- AFortiManager updates the device configuration according to the selected templates. It applies the
- BFortiManager does not update the port1 configuration because FortiManager does not change the
- CFortiManager updates access rights only for port1. FortiManager cannot update the IP address
- DFortiManager updates the configuration of port1, port2, and port5. The three ports might get new
How the community answered
(28 responses)- A4% (1)
- B4% (1)
- C11% (3)
- D82% (23)
Explanation

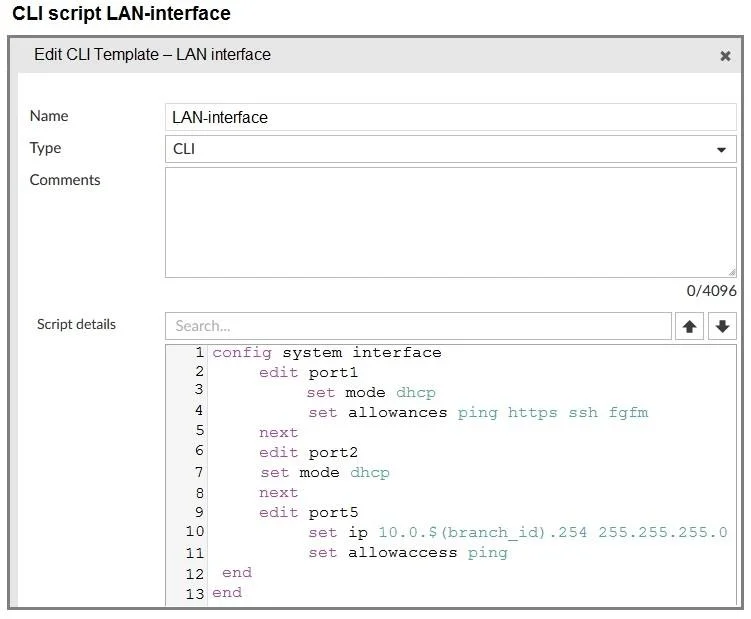

Enforce Device Configuration is enabled and the blueprint applies the provisioning CLI templates. The LAN-interface script sets port1 and port2 to DHCP and assigns a static IP to port5 (using the branch_id variable). Therefore, when FortiManager pushes the blueprint, it updates the configurations of port1, port2, and port5 - and their IP addresses may change accordingly.
Topics
Community Discussion
No community discussion yet for this question.
