350-401 Question #1243: Real Exam Question with Answer & Explanation

Question

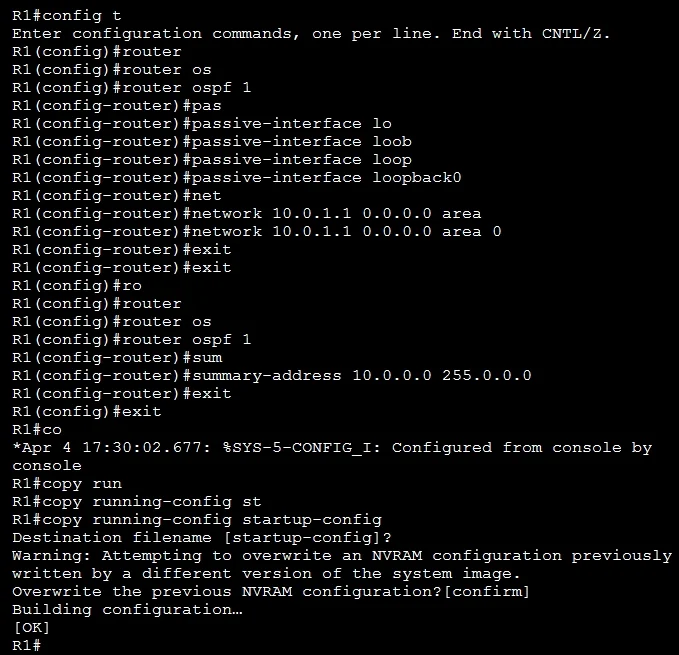

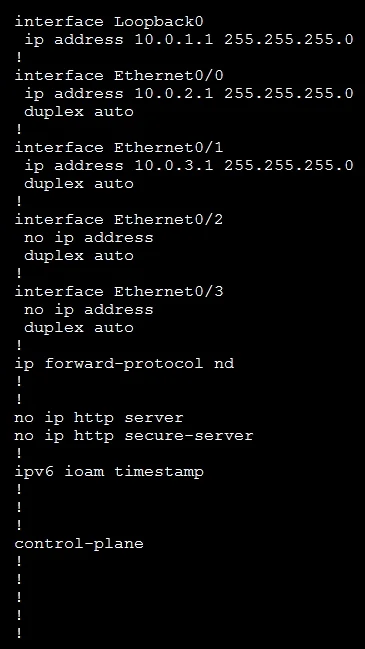

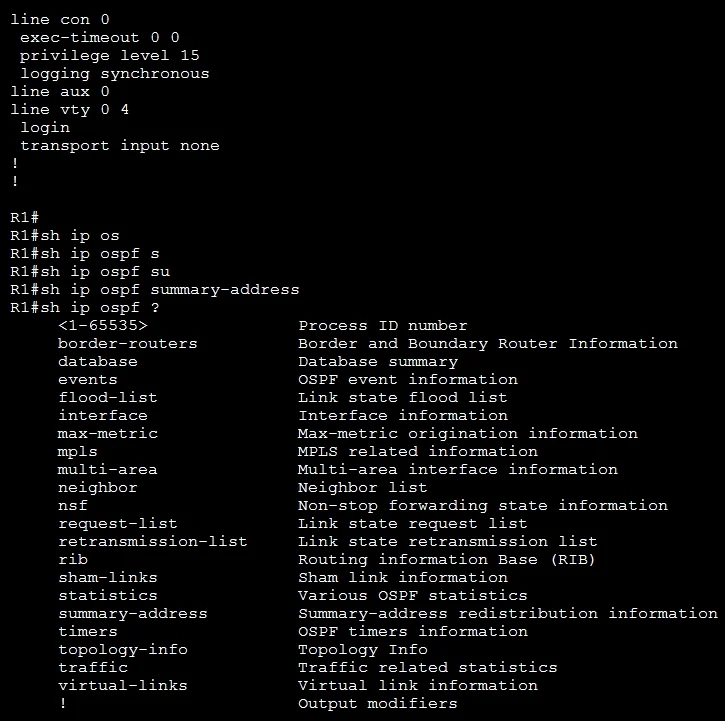

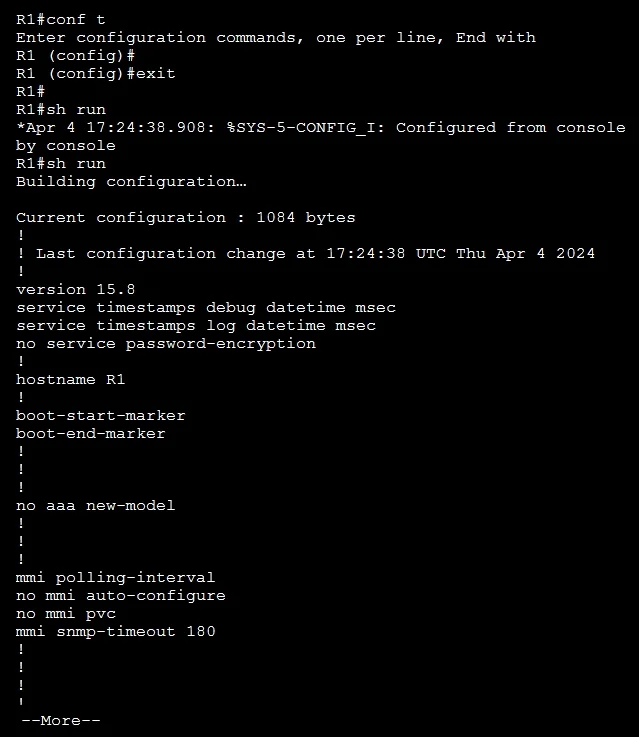

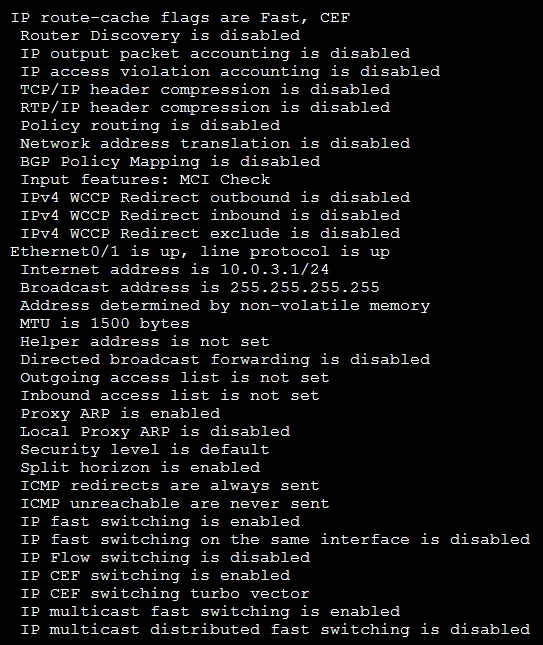

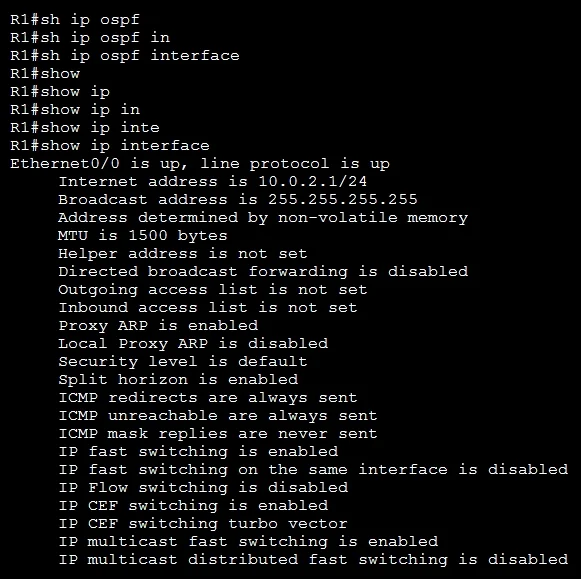

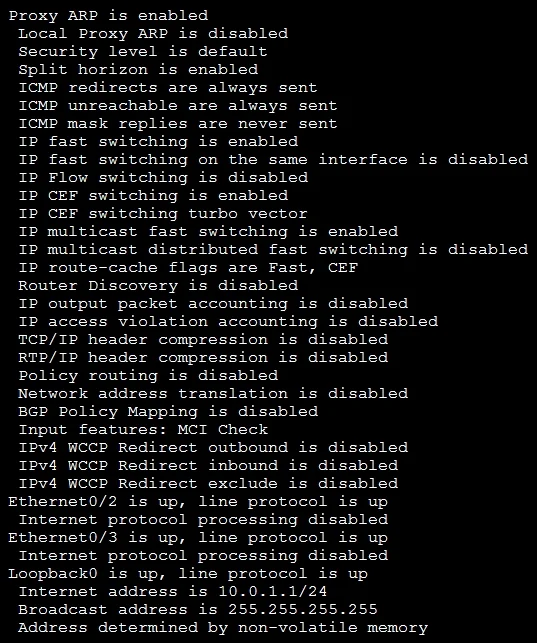

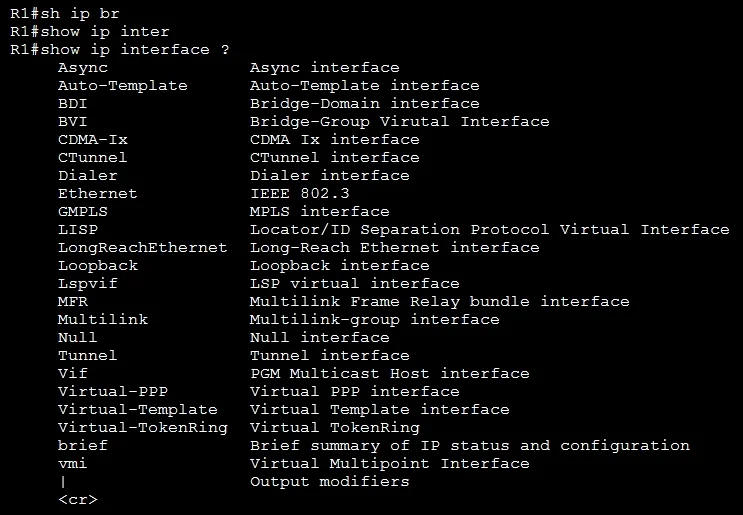

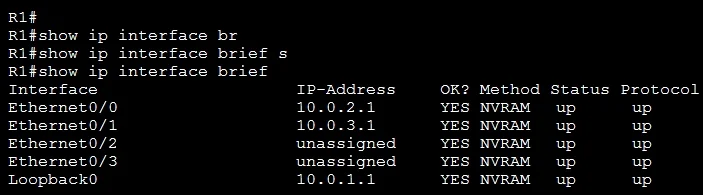

Lab Simulation 25 Guidelines This is a lab item in which tasks will be performed on virtual devices. - Refer to the Tasks tab to view the tasks for this lab item. - Refer to the Topology tab to access the device console(s) and perform the tasks. - Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. - All necessary preconfigurations have been applied. - Do not change the enable password or hostname for any device. - Save your configurations to NVRAM before moving to the next item. - Click Next at the bottom of the screen to submit this lab and move to the next question. - When Next is clicked, the lab closes and cannot be reopened. Topology Tasks OSPF is partially configured. Complete the OSPF configurations to achieve these goals: 1. Configure OSPF on router R1 according to the topology so that all networks are advertised. Do not use the network statement under the "router ospf" configuration section to accomplish this task. 2. Configure a single command on the ABR routers to ensure only one summary route is advertised to area 0. R1 Answer:

Explanation

This lab simulation requires completing the OSPF configurations to achieve a specified networking objective, building upon a partially configured OSPF environment.

Concept tested. Completing OSPF configuration

Reference. https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_ospf/configuration/15-mt/iro-ospf-15-mt-book/iro-ospf-cfg-ospfv2.html
