350-401 Question #1023: Real Exam Question with Answer & Explanation

Question

Lab Simulation 11 Guidelines This is a lab item in which tasks will be performed on virtual devices. - Refer to the Tasks tab to view the tasks for this lab item. - Refer to the Topology tab to access the device console(s) and perform the tasks. - Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. - All necessary preconfigurations have been applied. - Do not change the enable password or hostname for any device. - Save your configurations to NVRAM before moving to the next item. - Click Next at the bottom of the screen to submit this lab and move to the next question. - When Next is clicked, the lab closes and cannot be reopened. Topology Tasks The operations team started configuring network devices for a new site. Complete the configurations to achieve these goals: 1. Ensure that port channel Po1 between DISTRO-SW01 and DISTRO-SW02 is operational using the LACP protocol. Configuration changes for this task must be made on DISTRO-SW01. 2. Ensure that traffic on VLAN 10 is carried as untagged traffic between DISTRO-SW01 and DISTRO-SW02. 3. Complete the Rapid-PVST+ configuration on DISTRO-SW2 by ensuring it it the secondary root switch for all VLANs in the range of 1 to 1005. Initial Config DISTRO-SW01 DISTRO-SW02 Answer: Note: Please check the configuration carefully as some parameters (like port-channel number, VLAN number...) may be different. Task 1. The trunk between SW10 and SW30 is not operational. Troubleshoot the issue and ensure PC2 can ping PC1 (10.10.100.10) across the link. Use the "show run" command on SW10 we learn that the interface e0/0 is configured in access mode so we need to change it to trunk port: SW10(config)#interface e0/0 SW10(config-if)#switchport trunk encapsulation dot1q SW10(config-if)#switchport mode trunk SW10(config-if)#switchport trunk allowed vlan 300 Verification Open PC2 and try pinging to PC1 (you have to wait for about 1 minute before the ping can work): PC2>ping 10.10.100.10 !!!!! -> Ping is successful! Task 2. Configure SW10 interface E0/0 for aggressive unidirectional link detection. SW10(config)#interface e0/0 SW10(config-if)#udld port aggressive Task 3. The LACP port-channel between SW10 and SW20 is not operational. The switches should negotiate the port channel but this is not occurring. Troubleshoot the issue and ensure that PC2 can ping PC3 (10.10.100.30) across the port-channel. We see the "interface Port-channel10" already existed so it is better to remove this interface so that it will not conflict when we group E0/2 and E0/3 into a port-channel. But we should reconfigure the command "switchport trunk allowed vlan 1,300" on this port-channel when grouping E0/2 & E0/3 interfaces: Sw10(config)#no interface po10 Sw10(config)#interface range e0/2 - 3 Sw10(config-if)#switchport trunk encapsulation dot1q Sw10(config-if)#switchport mode trunk Sw10(config-if)#switchport trunk allowed vlan 1,300 Sw10(config-if)#channel-group 10 mode active After this configuration, we will see a new interface Port-channel 10 has been created and in up state. Verification Open PC2 and try pinging to PC3: PC2>ping 10.10.100.30 !!!!! -> Ping is successful! (Optional) Task 4. Configure interface e0/1 on SW10 so that packet forwarding begins immediately after the link-state moves to UP. Portfast feature causes a switch port to enter the spanning tree forwarding state immediately, bypassing the listening and learning states so we need to enable it on E0/1 of SW10: SW10(config)#interface e0/1 SW10(config-if)#switchport mode access SW10(config-if)#spanning-tree portfast (Optional) Task 5. Configure spanning tree on SW 10 to support 32-bit value SW10(config)#spanning-tree pathcost method long Save the configuration SW10#copy running-config startup-config

Options

• task1. Ensure that port channel Po1 between DISTRO-SW01 and DISTRO-SW02 is operational using the LACP protocol. Configuration changes for this task must be made on DISTRO-SW01. 2. Ensure that traffic on VLAN 10 is carried as untagged traffic between DISTRO-SW01 and DISTRO-SW02. 3. Complete the Rapid-PVST+ configuration on DISTRO-SW2 by ensuring it is the secondary root switch for all VLANs in the range of 1 to 1005.
• prerequisitesConsole access to virtual devices (DISTRO-SW01, DISTRO-SW02)

Explanation

Lab Simulation 11 — Detailed Explanation

Overall Goal

This lab tests three core switching technologies working together:

The underlying problem: the pre-existing configuration on DISTRO-SW01 has interfaces in passive LACP mode, and DISTRO-SW02 is also passive — meaning neither side initiates negotiation and the port-channel never comes up.

Task 1 — Fix LACP Port-Channel (DISTRO-SW01)

Why LACP mode matters

LACP has two active modes:

Critical rule: If both sides are passive, the channel never forms. At least one side must be active.

The pre-existing config had DISTRO-SW01's interfaces in passive. Since DISTRO-SW02 is also passive (or was being set to passive), the channel was dead.

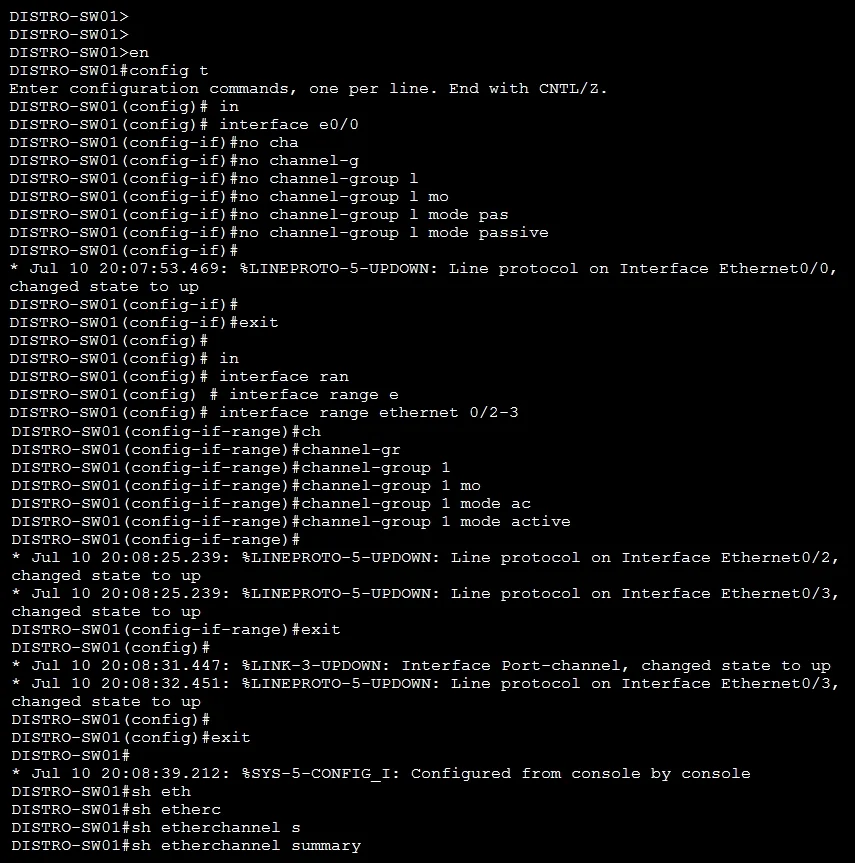

Step-by-Step: DISTRO-SW01

Steps 1–2: en / conf t

Enter privileged exec then global config. Required to make any configuration changes.

Step 3: int e0/0

Enter interface config for the first physical member of the port-channel.

Steps 4–7: no channel-group 1 mode passive → channel-group 1 mode passive
           → no channel-group 1 mode passive → channel-group 1 mode active

This zigzag represents live troubleshooting, not intentional back-and-forth. What's happening:

1. no channel-group 1 mode passive — removes the broken passive config
2. channel-group 1 mode passive — operator tests passive (mistake/curiosity)
3. no channel-group 1 mode passive — removes it again after realizing passive won't work
4. channel-group 1 mode active — correct fix — SW01 now actively initiates LACP

If skipped: The interface stays passive, LACP PDUs are never sent, Po1 remains down.

Steps 9–13: Repeat the same passive → active fix on e0/1

Same logic as e0/0. Both physical members of the channel must match the channel-group number and protocol.

If only one interface is fixed: Po1 may come up with reduced bandwidth but is not fully redundant or load-balanced as designed.

Steps 15–16: int range e0/2-3 → channel-group 1 mode active

This is a shortcut using interface range. e0/2 and e0/3 either had no channel-group config or needed to be added. Setting them directly to active without the back-and-forth suggests these interfaces had no conflicting pre-config.

Why use int range: Applies the same command to multiple interfaces simultaneously — less typing, same result.

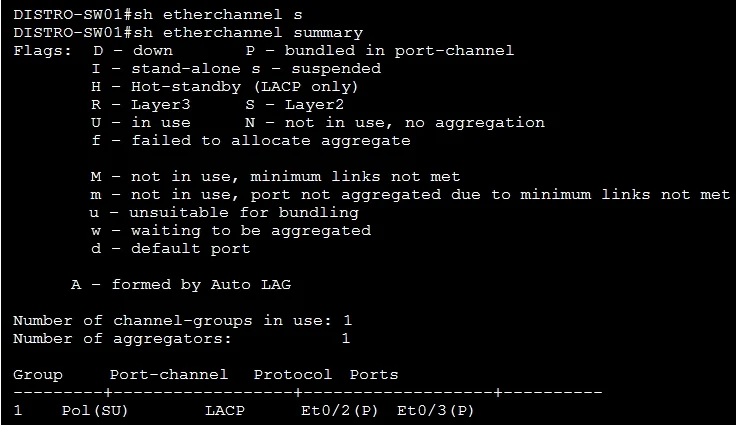

Steps 18–20: sh eth / sh etherchannel summary

Verification. The output should show Po1 as SU (Layer 2, in use) with member interfaces flagged as P (bundled in port-channel). If you see SD (standalone/down), the LACP negotiation failed.

Task 2 — VLAN 10 as Untagged Traffic (DISTRO-SW02)

Steps 26–28: int po1
             switchport mode trunk
             switchport trunk allowed vlan 10

Making VLAN 10 "untagged" means making it the native VLAN on the trunk.

• switchport mode trunk — sets Po1 as an 802.1Q trunk (required before any trunk commands)
• switchport trunk allowed vlan 10 — allows VLAN 10 to traverse the trunk

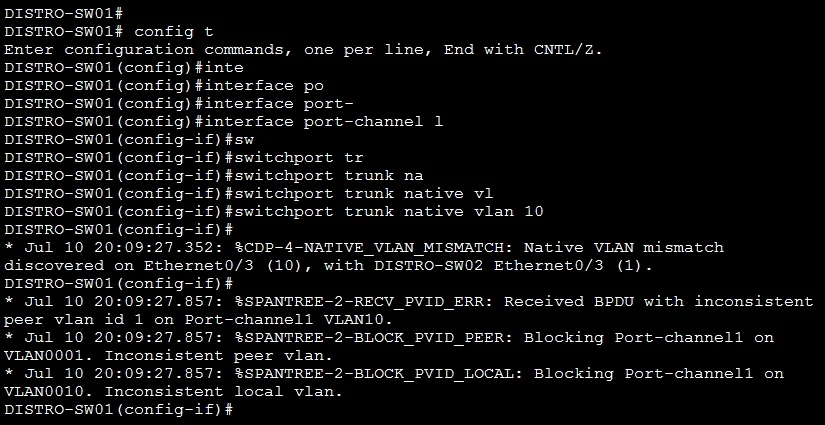

Important gap in the procedure: switchport trunk allowed vlan 10 puts VLAN 10 in the allowed list but does not make it untagged. The correct command to carry VLAN 10 as untagged is:

switchport trunk native vlan 10

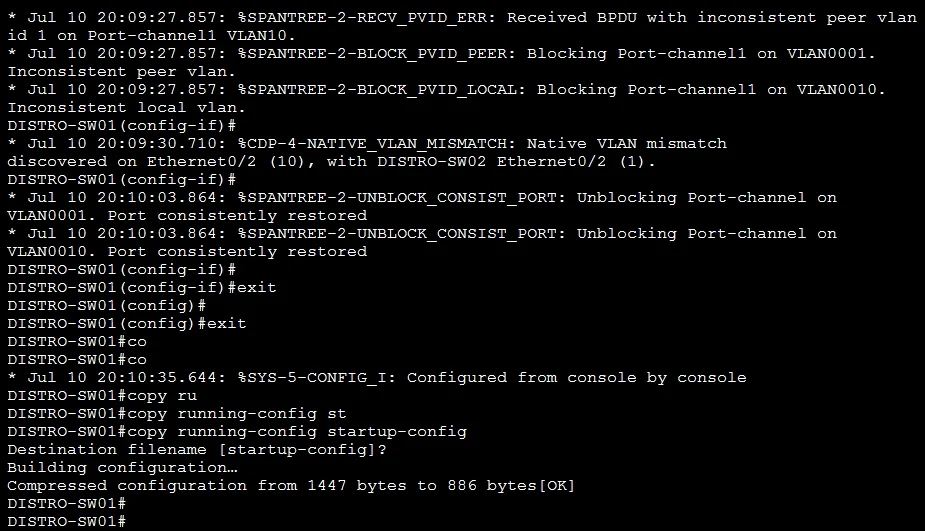

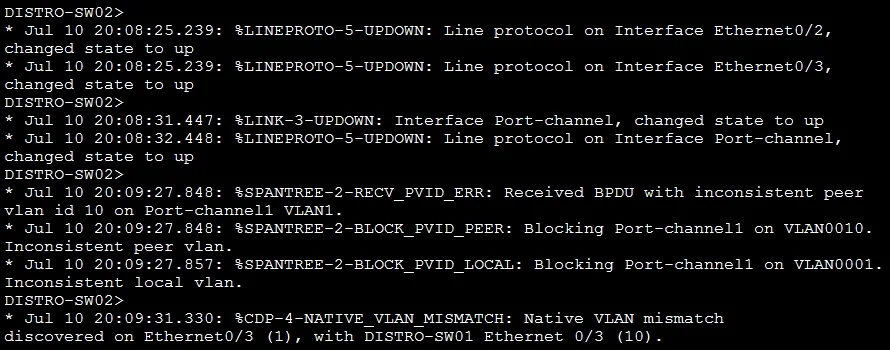

This must be configured on both switches' Po1 interface. A native VLAN mismatch causes CDP/STP warnings and traffic may be misclassified. The procedure as written is incomplete for Task 2 — you would also need to configure switchport trunk native vlan 10 on DISTRO-SW01's Po1.

Why native VLAN = untagged: On an 802.1Q trunk, the native VLAN is the one VLAN whose frames are sent without a VLAN tag. All other allowed VLANs are tagged.

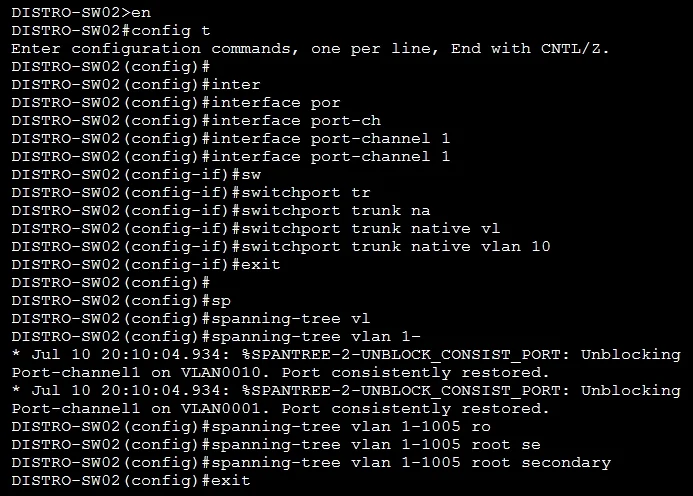

Task 3 — Rapid-PVST+ Secondary Root (DISTRO-SW02)

Step 30: spanning-tree mode rapid-pvst

Enables Rapid Per-VLAN Spanning Tree Plus. Must be configured before setting priorities — you can't be a secondary root in a mode you haven't enabled. Rapid-PVST+ converges much faster than classic STP (seconds vs. 30–50 seconds).

Step 31: spanning-tree vlan 1-1005 priority 28672

Manually sets the bridge priority for all VLANs 1–1005 to 28672.

STP priority values (in multiples of 4096):

Lower = more likely to become root. 28672 makes SW02 second-most-preferred.

Step 32: spanning-tree vlan 1-1005 root secondary

This is a macro command that does the same thing as step 31 — it sets priority to 28672 automatically. Steps 31 and 32 are redundant with each other; either alone achieves the goal.

The reason both appear: the operator may have wanted to be explicit (step 31), then used the convenience macro to confirm (step 32). In an exam, spanning-tree vlan 1-1005 root secondary alone is the standard answer.

Why not just set it as primary root? The primary root is presumably DISTRO-SW01 or another switch. The secondary root takes over only if the primary fails — it's the STP failover mechanism.

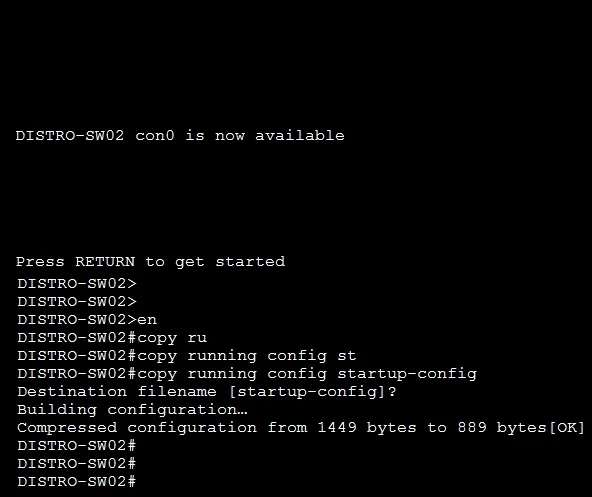

Steps 34–36: sh eth / sh etherchannel summary

Final verification on SW02. Confirms Po1 is up from SW02's perspective. You'd also want show spanning-tree vlan 1 to confirm SW02 shows as secondary root.

What Goes Wrong if Steps Are Out of Order

Memory Tips

LACP: "Active starts the conversation. Passive just listens. Two listeners = silence."

Native VLAN: "Native = naked (no tag). Use native vlan X to go tagless."

STP Priority shortcut: root secondary = 28672 = default (32768) minus one step (4096). Think: "secondary is one step below default."

EtherChannel verification: show etherchannel summary — look for SU on the port-channel line and P on member interfaces. Any other letter means something is broken.
