Question
Refer to the exhibit. R4 is configured as a receive-only EIGRP stub, and is adjacent with 209.165.202.139 (R3). However, R4 is not learning about network 209.165.201.0/27 from R3. What could be the cause of this issue?

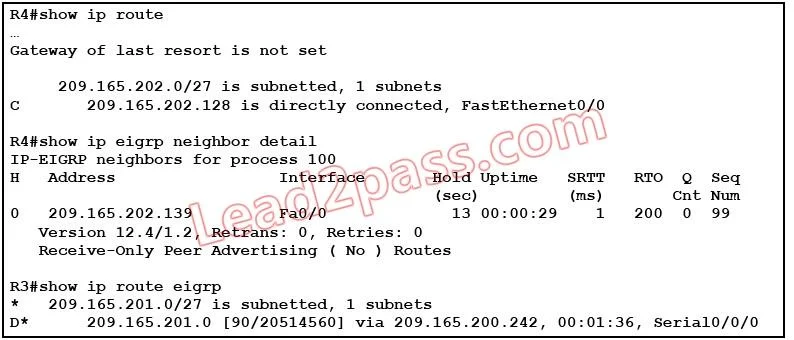

Exhibit
Options
- AR4 should learn this route from 209.165.200.242, and not from R3.
- BR3 is configured as a receive-only EIGRP stub.
- CR3 and R4 may be using different EIGRP process numbers.
- DR3 and R4 are asymmetrically adjacent neighbors.
How the community answered
(16 responses)- A19% (3)
- B69% (11)
- C6% (1)
- D6% (1)
Explanation

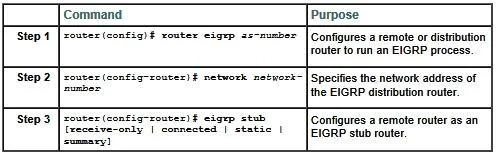

Configuring EIGRP Stub Routing To configure a remote or spoke router for EIGRP stub routing, use the following commands beginning in router configuration mode:
Topics
#EIGRP stub#receive-only stub#neighbor adjacency#route advertisement
