300-515 · Question #175
Refer to the exhibit. VLAN 10 is experiencing congestion on the link to ISP 1. The network architect asked an engineer to update the configuration on RA so that VLAN 10 traffic travels via ISP 2…
The correct answer is C. Apply route-map Vlan10_to_ISP_2 on RA Ge2/1. The goal is to steer VLAN 10 traffic toward ISP 2. The route-map for VLAN 10 sets the next hop to the ISP 2 router (10.0.0.10). To influence outbound forwarding, the policy must be applied on the outgoing interface toward ISP 2 (Ge2/1). Applying it there redirects only VLAN 10…
Question
Refer to the exhibit. VLAN 10 is experiencing congestion on the link to ISP 1. The network architect asked an engineer to update the configuration on RA so that VLAN 10 traffic travels via ISP 2 without affecting traffic from VLAN 20. Which action meets this requirement?

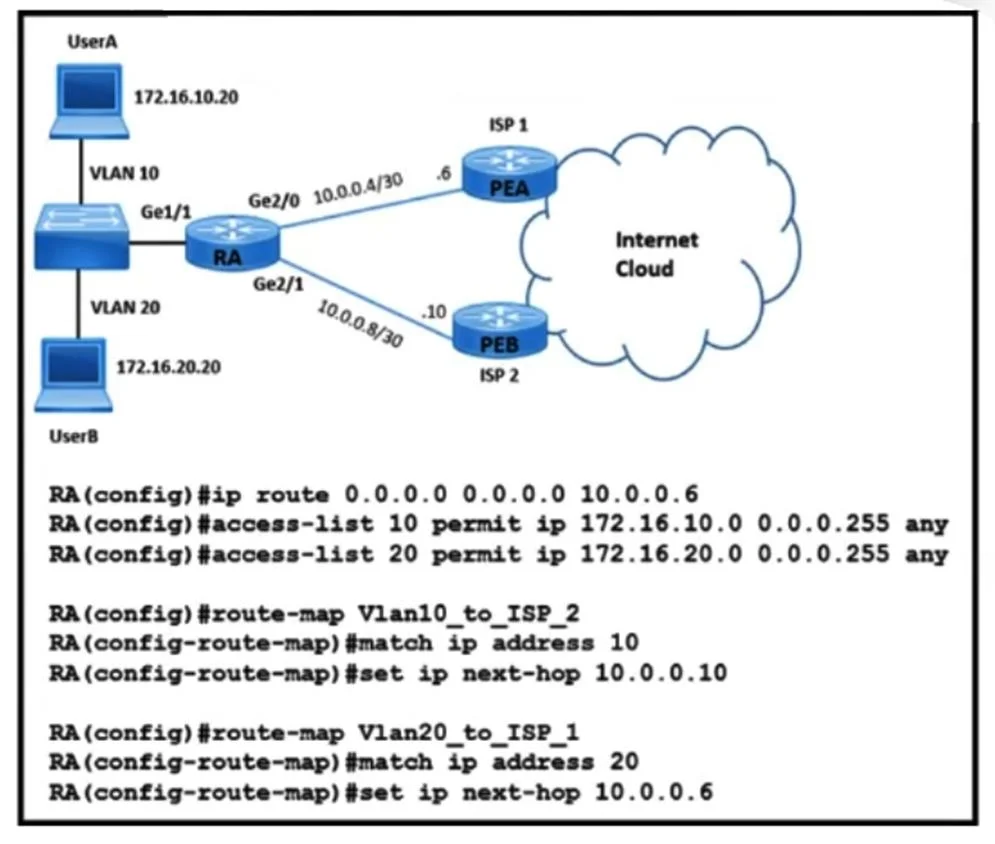

Exhibit
Options
- AApply route-map Vlan10_to_ISP_2 on RA Ge1/1.10.
- BApply route-map Vlan10_to_ISP_2 on RA Ge2/0.
- CApply route-map Vlan10_to_ISP_2 on RA Ge2/1.
- DApply route-map Vlan10_to_ISP_2 on RA Ge1/1.20.
How the community answered
(54 responses)- A6% (3)
- B4% (2)
- C78% (42)
- D13% (7)
Explanation
The goal is to steer VLAN 10 traffic toward ISP 2. The route-map for VLAN 10 sets the next hop to the ISP 2 router (10.0.0.10). To influence outbound forwarding, the policy must be applied on the outgoing interface toward ISP 2 (Ge2/1). Applying it there redirects only VLAN 10 traffic while leaving VLAN 20 traffic unaffected.
Topics
Community Discussion
No community discussion yet for this question.
