300-515 · Question #117
Refer to the exhibit. A service provider is providing a multicast service on the MPLS network. The IPTV multicast source is connected to router CE3. Router P is the root of the MP2MP tree. Which…
The correct answer is B. Configure data MDT in the VRF on PE2. While the default MDT (configured on PE1) carries auto-discovery and control, the actual IPTV multicast stream is carried over a data MDT P2MP tree. PE2 must have a data-MDT configured in the same VRF so that it will join the mLDP data tree and forward the 232.1.1.17 stream down
Question
Refer to the exhibit. A service provider is providing a multicast service on the MPLS network. The IPTV multicast source is connected to router CE3. Router P is the root of the MP2MP tree. Which action must an engineer take so that the receiver on CE2 receives IPTV multicast stream for multicast address 232.1.1.17

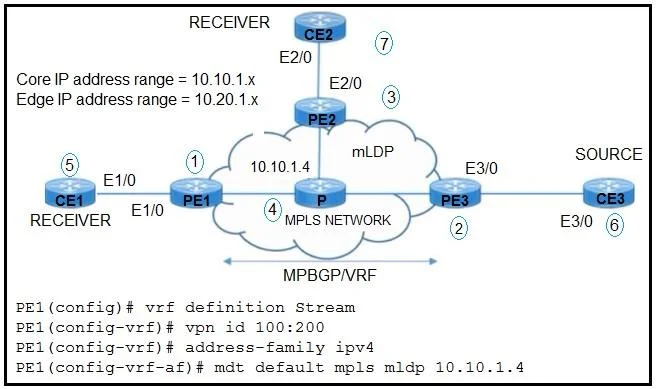

Exhibit
Options
- AConfigure mLDP VRF on PE2.
- BConfigure data MDT in the VRF on PE2.
- CConfigure mLDP VRF on all PEs.
- DConfigure data MDT in the VRF on PE3.
How the community answered
(23 responses)- A9% (2)
- B43% (10)
- C30% (7)
- D17% (4)
Explanation
While the default MDT (configured on PE1) carries auto-discovery and control, the actual IPTV multicast stream is carried over a data MDT P2MP tree. PE2 must have a data-MDT configured in the same VRF so that it will join the mLDP data tree and forward the 232.1.1.17 stream down
Topics
Community Discussion
No community discussion yet for this question.
