300-515 · Question #112
Refer to the exhibit. An engineer working for a service provider with an employee ID: 4985:13:314 is troubleshooting an ongoing network outage on an E-Line Services Network with L2VPN single…
The correct answer is C. 12vpn. Under the existing xconnect configuration change the neighbor statement to use pw-id instead of routed, for example: PE(config)# l2vpn PE(config-12vpn)# xconnect group CISCO PE(config-12vpn-xc)# p2p SS-PW PE(config-12vpn-xc-p2p)# interface GigabitEthernet0/1/0/2…
Question
Refer to the exhibit. An engineer working for a service provider with an employee ID: 4985:13:314 is troubleshooting an ongoing network outage on an E-Line Services Network with L2VPN single- segment pseudowires. The verification confirmed that the Layer 2 configuration is correct and the physical connection between the devices is working normally. Which additional command sequence resolves the issue?

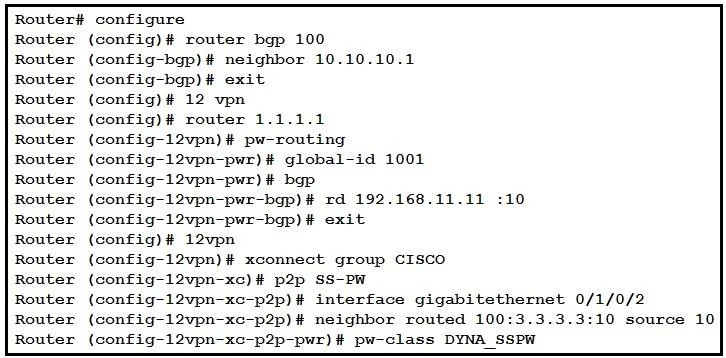

Exhibit
Options
- Aconfigure
- Brouter bgp 100
- C12vpn
- Dconfigure
How the community answered
(22 responses)- A5% (1)
- B27% (6)
- C55% (12)
- D14% (3)
Explanation
Under the existing xconnect configuration change the neighbor statement to use pw-id instead of routed, for example: PE(config)# l2vpn PE(config-12vpn)# xconnect group CISCO PE(config-12vpn-xc)# p2p SS-PW PE(config-12vpn-xc-p2p)# interface GigabitEthernet0/1/0/2 PE(config-12vpn-xc-p2p)# neighbor 10.10.10.1 pw-id 100 This corrects the pseudowire neighbor syntax so the two PE routers signal the PW over MP-BGP
Topics
Community Discussion
No community discussion yet for this question.
