Drag and Drop Question An engineer must edit the settings of a site-to-site IPsec VPN connection between an on- premises Cisco IOS XE router and Amazon Web Services (AWS). IPsec must be configured…

Question

Exhibit

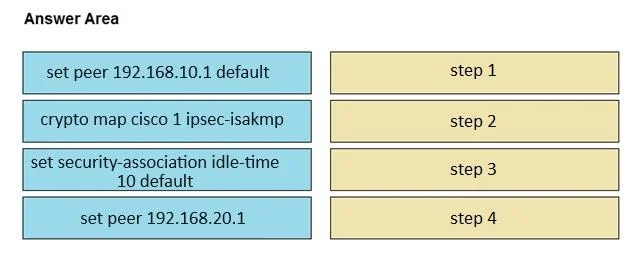

Answer Area

Explanation

IPsec Crypto Map Command Ordering - Explained

This question tests your knowledge of the correct sequence for configuring a multi-peer crypto map entry on Cisco IOS XE.

The Correct Sequence

crypto map cisco 1 ipsec-isakmp
set peer 192.168.10.1 default
set peer 192.168.20.1
set security-association idle-time 10 default

Item-by-Item Explanation

1. crypto map cisco 1 ipsec-isakmp - Must come first

This is the entry point command that creates or enters the crypto map configuration context. It specifies:

• cisco - the crypto map name (matches the question's "named Cisco")
• 1 - the sequence number (first entry, as specified)
• ipsec-isakmp - IKE-negotiated mode (required for dynamic SA negotiation with AWS)

All set sub-commands below are only valid inside this context. Nothing else can precede it - this is non-negotiable.

2. set peer 192.168.10.1 default - Primary peer

The default keyword designates this as the primary/default peer. In a multi-peer crypto map:

• IOS XE tries peers in the order they are listed
• The default keyword marks the peer to use when no more-specific match exists
• This is the first AWS VPN tunnel endpoint (primary path)

Common mistake: Students sometimes put the non-default peer first, thinking "default" means fallback/secondary. It actually marks the primary endpoint, and its listing position also controls try-order.

3. set peer 192.168.20.1 - Secondary/failover peer

No default keyword here - this is the backup peer. When the primary peer's security association goes idle or fails, IOS XE automatically fails over to this peer. In AWS site-to-site VPN configurations, AWS provides two tunnel endpoints for redundancy - this is the second one.

Common mistake: Reversing the order of peers 2 and 3. The primary (default) peer must be declared before the secondary.

4. set security-association idle-time 10 default - SA idle timer

This sets how long an idle Security Association is kept before being torn down. When the SA is cleared due to idle timeout, the router attempts to re-establish using the next available peer - implementing the failover behavior described. The default keyword applies this as the baseline idle-time for the map entry.

Note on the value discrepancy: The question states "120 seconds of idle time" but the command shows idle-time 10. This appears to be an exam discrepancy - the question is testing which command and where it belongs in the sequence, not the specific value. On real IOS XE hardware, you would use set security-association idle-time 120 to match 120 seconds.

Common mistake: Placing the SA idle-time before the peer commands. While IOS may accept it either way, the correct and expected convention is: establish who you're talking to (peers) before setting how long to keep the conversation alive (SA timers).

Summary of Logic Flow

The ordering follows a natural dependency chain: you must define where before you define how long.
