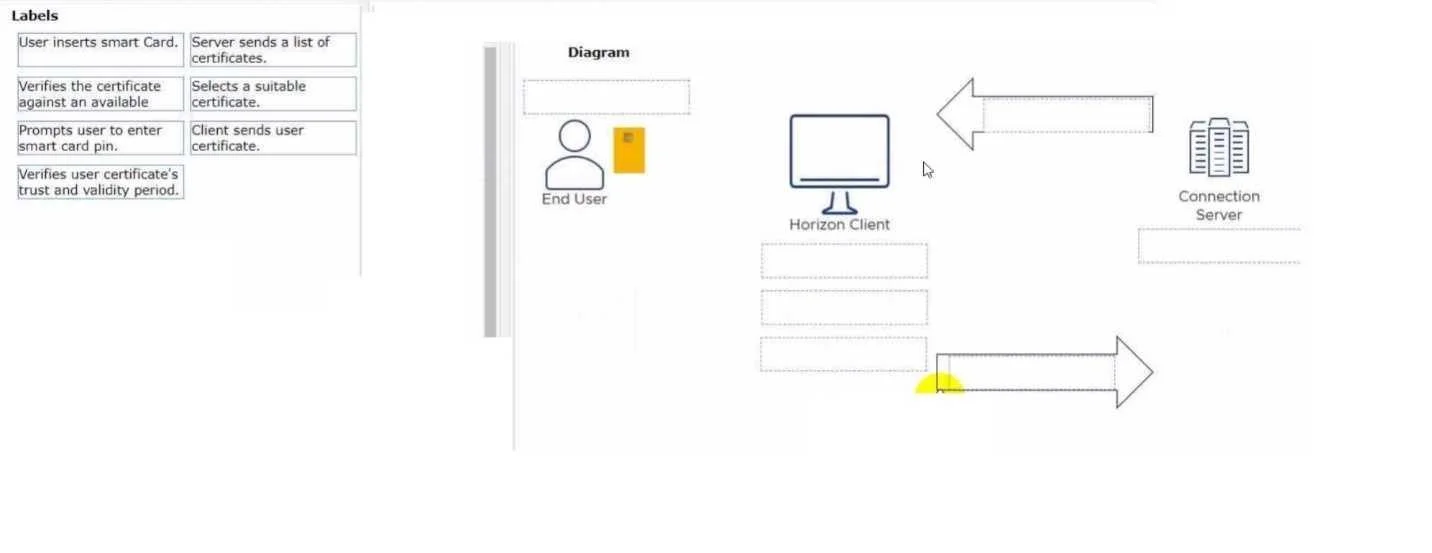

Drag and Drop Question Drag and drop the labels on the left for the authentication flow for smart cards into the correct location in the diagram on the right. Answer:

Question

Exhibit

Answer Area

Explanation

Smart Card Authentication Flow - Explained

This flow describes TLS mutual authentication with smart cards, where both the server and client authenticate each other using certificates stored on a physical card.

Step-by-Step Breakdown

1. Obtains a smart card.

Prerequisite / out-of-band setup

This happens before any network communication. A certificate authority (CA) issues a certificate and private key, which are provisioned onto the physical smart card. No authentication can begin without this. It's first because it's the foundational prerequisite.

2. Server sends a list of accepted certificates.

TLS handshake - CertificateRequest message

During the TLS handshake, the server sends a CertificateRequest message containing the list of trusted CA Distinguished Names (DNs) it will accept. This is server-initiated - the client cannot act without knowing what the server considers valid.

Common mistake: People assume the client just sends any certificate it has. In reality, the server dictates what it's willing to trust first.

3. Selects a suitable certificate.

Client-side matching

The client (smart card middleware/OS) inspects its available certificates and matches one against the server's accepted CA list. Only after receiving step 2 can the client make an informed selection.

Common mistake: Thinking the client selects a certificate before knowing what the server accepts - this would risk sending a certificate that the server immediately rejects.

4. Client sends user certificate.

TLS Certificate message

The selected certificate (the public part - no private key) is transmitted to the server. This is a standard TLS Certificate message. The certificate is public data and does not require the PIN to read.

Common mistake: Assuming the PIN is needed to send the certificate. The certificate itself is not protected by the PIN - only private key operations are.

5. Verifies the certificate against an available trust and validity period.

Server-side validation

The server validates the received certificate:

• Is it signed by a trusted CA?
• Is it within its validity period (not expired)?
• Has it been revoked (CRL/OCSP check)?

This happens before PIN entry because there is no point prompting the user if the certificate is already invalid or untrusted.

Common mistake: Placing verification after PIN entry. Verification is server-side and purely about the certificate's authenticity - it has nothing to do with the user's PIN.

6. Prompts user to enter smart card PIN.

Private key access - proof of possession

Only after the server confirms the certificate is valid does it request proof that the client actually possesses the corresponding private key (via a CertificateVerify challenge). To sign this challenge, the smart card's private key must be unlocked - which requires the user's PIN.

This step is last because:

• There's no reason to unlock the card if the cert was rejected in step 5
• The PIN gate protects the signing operation, not the certificate itself

Common mistake: Placing PIN entry near the beginning (before sending the certificate). This misunderstands that the PIN guards the private key operation, not reading the certificate.

Key Takeaway

The flow separates two distinct phases:

The PIN always comes last because it's the gatekeeper for the private key - and you only need the private key after everything else has been validated.
