400-007 Question #37: Real Exam Question with Answer & Explanation

The correct answer is A. BPDU guard on access ports E. edge port on access ports. In this data center design - VLANs spanning multiple access switches with HSRP and Layer 3 SVIs on aggregation switches - the aggregation switches are the natural STP root bridges, and access ports connect only to end hosts or servers. Choice A (BPDU guard on access ports) is cor

Designing Network Infrastructure

Question

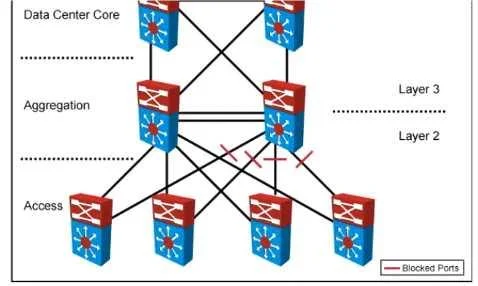

Refer to the exhibit. Your company designed a network to allow server VLANs to span all access switches in a data center. In the design, Layer 3 VLAN interfaces and HSRP are configured on the aggregation switches. Which two features improve STP stability within the network design? (Choose two.)

Exhibit

Options

ABPDU guard on access ports
BBPDU guard on the aggregation switch downlinks toward access switches
Croot guard on the aggregation switch downlinks toward access switches
Droot guard on access ports
Eedge port on access ports
Faccess switch pairs explicitly determined to be root and backup root bridges

Explanation

In this data center design - VLANs spanning multiple access switches with HSRP and Layer 3 SVIs on aggregation switches - the aggregation switches are the natural STP root bridges, and access ports connect only to end hosts or servers. Choice A (BPDU guard on access ports) is correct because access ports should never receive BPDUs from legitimate end devices. BPDU guard immediately err-disables any access port that receives a BPDU, protecting the STP topology from rogue or unauthorized switches plugged into host ports. Choice E (edge port / PortFast on access ports) is correct because configuring access ports as edge ports allows them to skip the STP listening and learning states, transitioning immediately to forwarding. This eliminates unnecessary Topology Change Notifications (TCNs) every time a server or host connects or disconnects, which is a major source of STP instability. These two features are complementary and should always be deployed together on host-facing ports. Choice B is incorrect - enabling BPDU guard on aggregation downlinks would err-disable those ports the moment a legitimate access switch BPDU arrives. Choice C (root guard on aggregation downlinks) would be valid for protecting root placement but is not among the correct answers here. Choice D is incorrect - root guard on access ports is redundant given BPDU guard is already there. Choice F is not a Cisco STP stability feature.

Topics

#STP stability#BPDU Guard#edge port#aggregation switch
