OSPF Lab Simulation - Detailed Explanation

Overall Goal

This lab configures OSPF using interface-level commands instead of the traditional network statement. It also optimizes OSPF behavior on Ethernet links by eliminating unnecessary DR/BDR elections and suppressing extra /32 host routes from loopbacks.

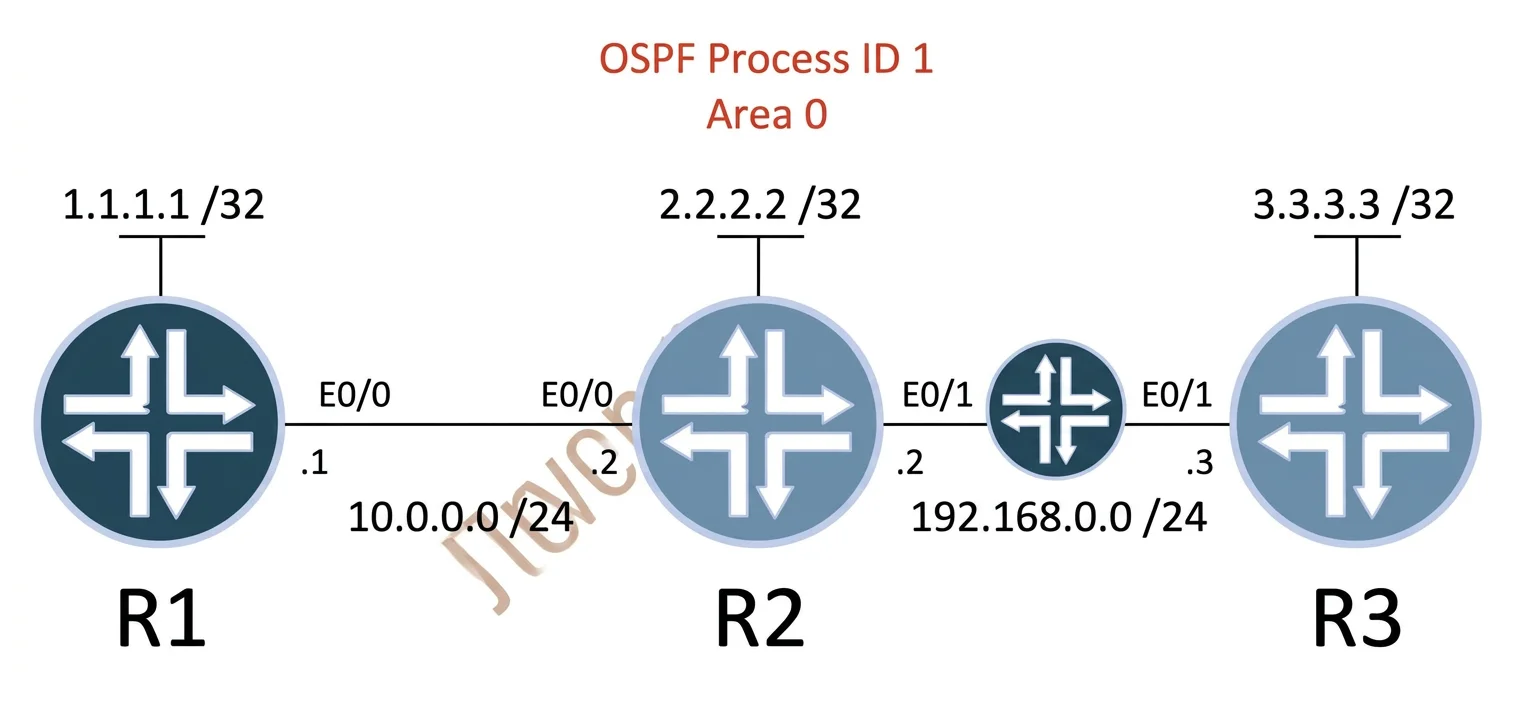

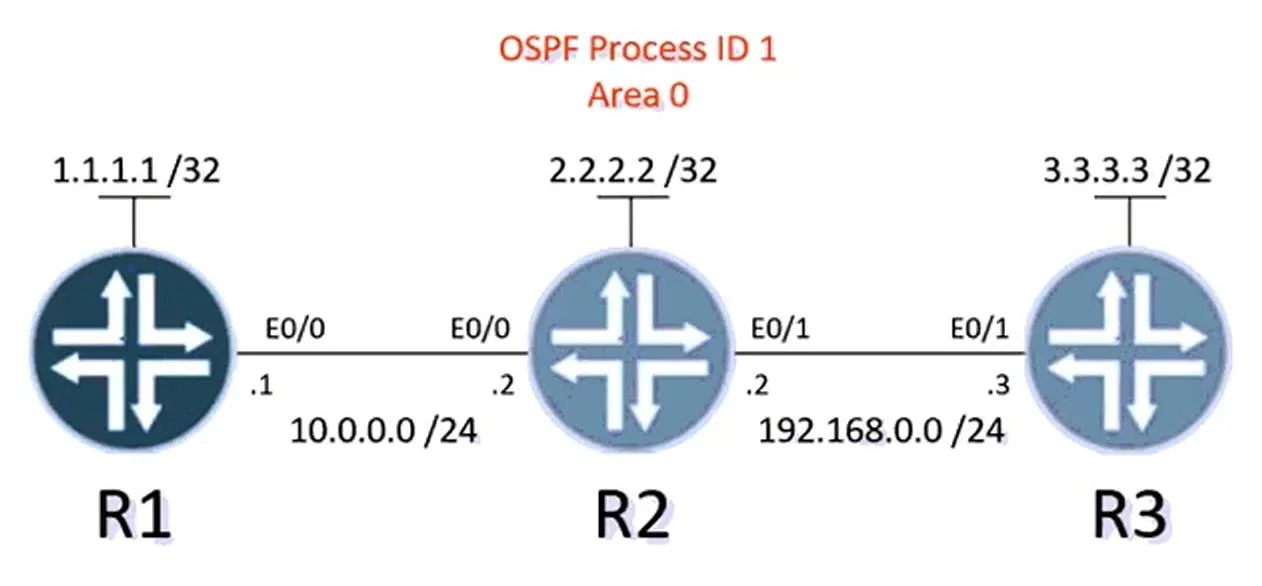

The topology is a chain: R1 - (e0/0)/(e0/0) - R2 - (e0/1)/(e0/1) - R3, each router also having a loopback (lo0).

Why This Approach Is Correct

Traditional OSPF uses network x.x.x.x wildcard area X under router ospf. The modern alternative is to enable OSPF directly on the interface with ip ospf <process-id> area <area>. This is cleaner, more explicit, and avoids wildcard mask errors.

Step-by-Step Reasoning

Steps 1-3: Enable OSPF on each interface with ip ospf 1 area 0

This replaces the network statement entirely. Each interface is individually told to participate in OSPF process 1, area 0. The router automatically advertises that interface's subnet into OSPF.

R1's e0/0 connects to R2 -> both must have OSPF enabled on that link to form adjacency
R2's e0/1 connects to R3 -> same reason
All lo0 interfaces must be included so loopback networks are advertised

If skipped: An interface without ip ospf 1 area 0 won't advertise its subnet and won't form neighbors across that link - other routers will have no route to that network.

Step 4: show ip ospf neighbor

Verifies that neighbor adjacencies reached FULL state. If you see neighbors stuck in INIT or 2WAY, there's a mismatch (area, process ID, hello/dead timers, or authentication).

If skipped: You might proceed assuming OSPF works, only to find routes missing later with no clear cause.

Step 5: show ip route ospf

Confirms all subnets (Ethernet links + loopbacks) appear in the routing table as OSPF routes (marked O). This validates Task 2 - all networks are being exchanged.

If skipped: You can't confirm Task 2 is satisfied and may submit an incomplete configuration.

Steps 6-7: ip ospf network point-to-point on each Ethernet interface

This single command solves two problems simultaneously:

Problem	Default Behavior	Point-to-Point Fix
DR/BDR election	Ethernet = broadcast type -> triggers DR/BDR election	P2P type -> no election, no DR/BDR overhead
Loopback host routes	Loopbacks advertised as /32 by default	P2P changes how OSPF reports connected subnets, advertising the actual subnet mask

The question asks for a single command that does both - ip ospf network point-to-point is that command.

If skipped: DR/BDR elections still happen (wasted overhead, slower convergence on failures), and loopback interfaces advertise as /32 host routes rather than their configured subnet mask, which can confuse routing.

If applied to loopbacks instead of Ethernet: Loopbacks are already point-to-point by nature. The command belongs on the Ethernet interfaces where the broadcast network type is the default.

Step 8: copy running-config startup-config

Saves config to NVRAM. Without this, a reload wipes everything. The lab explicitly requires this before clicking Next.

If skipped: Your configuration is lost and the lab scores zero.

Order Dependency

Steps 6-7 can technically be done before or after steps 1-3, but logically you should enable OSPF first, verify adjacencies, then tune network type. If you set point-to-point before enabling OSPF on an interface, it's harmless but you can't verify its effect until OSPF is running.

Memory Tip

"Interface IN, Point-to-Point OUT"

Put OSPF IN at the interface level: ip ospf 1 area 0

Take DR/BDR and /32 routes OUT: ip ospf network point-to-point

Always save OUT before you leave: copy run start

The key insight: on a two-router link, there's no need for a DR/BDR (those exist to reduce adjacency overhead on multi-access networks with many routers). Point-to-point is always the right choice for a link with exactly two endpoints.
