300-810 Question #286: Real Exam Question with Answer & Explanation

Question

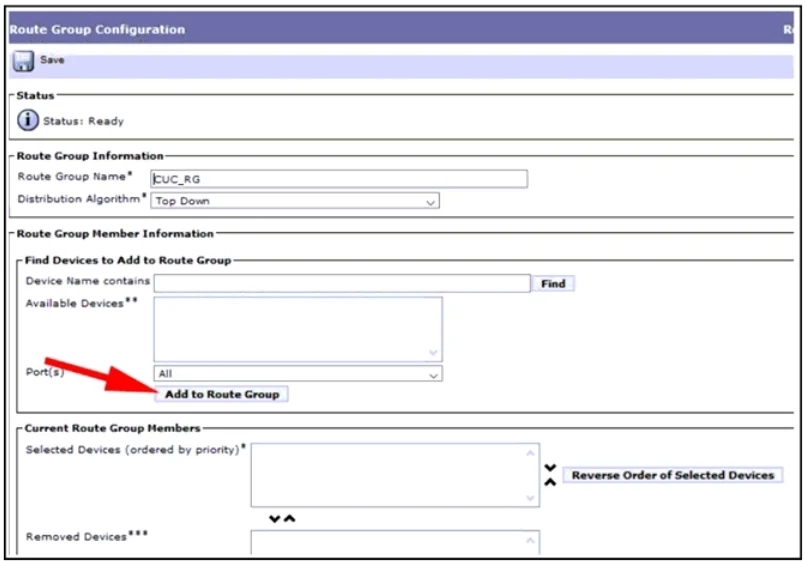

Refer to the exhibit. An engineer is configuring a Cisco Unity Connection SIP integration with Cisco UCM. The engineer does not see any available devices when trying to configure the route group. The engineer creates the SIP trunk security profile and the SIP profile. What must the engineer configure in Cisco UCM to resolve the issue?

Options

• ASIP cube
• Broute pattern
• Croute list
• DSIP trunk

Explanation

The error occurs because no devices are listed under the "Available Devices" section in the Route Group configuration. This is due to the absence of a configured SIP trunk in Cisco Unified Communications Manager (Cisco UCM). A SIP trunk is required to establish the communication path between Cisco Unity Connection and Cisco UCM. Without it, the system cannot populate devices in the route group configuration. Steps to resolve: 1. Navigate to Device > Trunk in Cisco UCM. 2. Create a new SIP trunk. 3. Assign the appropriate SIP trunk security profile and SIP profile that the engineer has already 4. Save and apply the configuration. 5. The SIP trunk will now appear in the "Available Devices" section, allowing the engineer to add it to the route group.
