Question

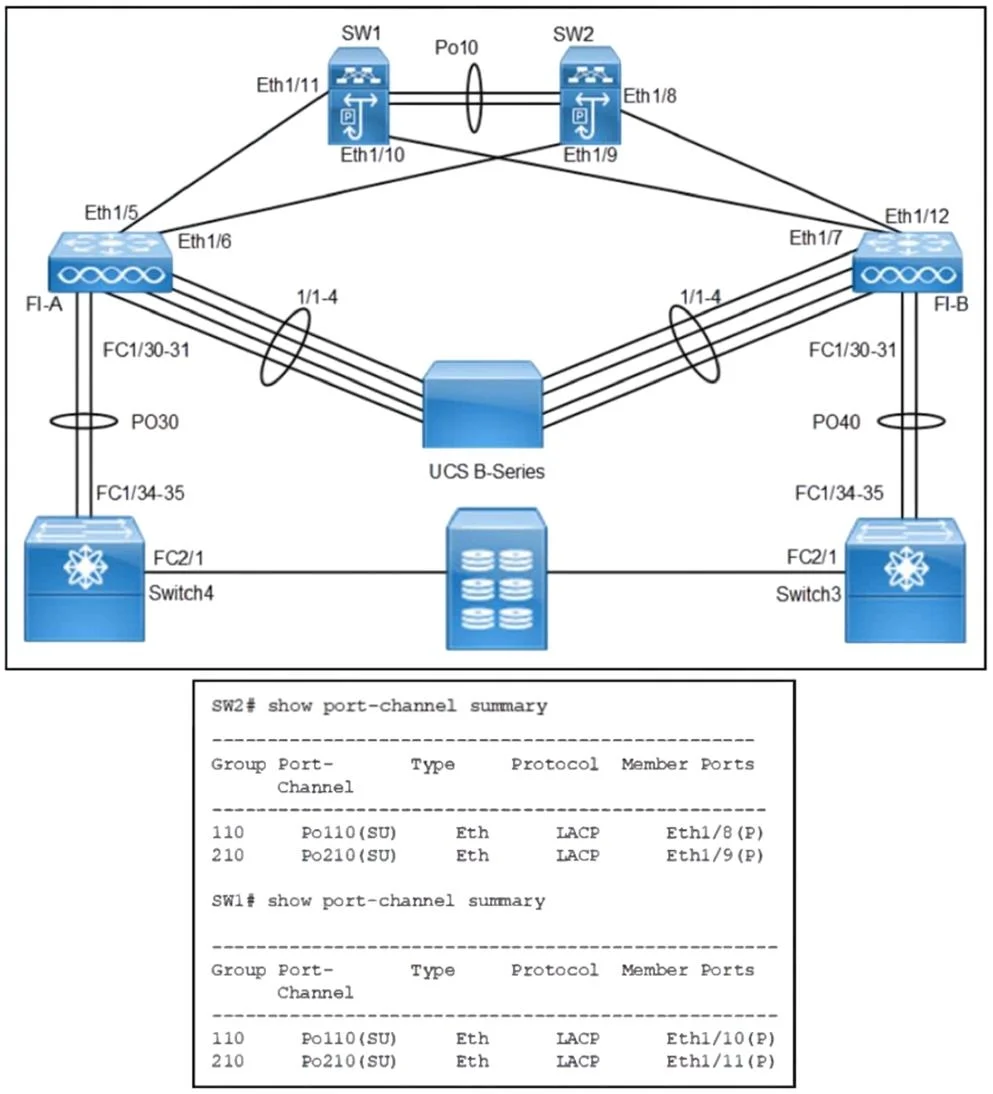

Refer to the exhibit. This configuration has been applied:
Eth1/5 and Eth1/7 as uplink ports and belong to port-channel 100 Eth1/6 and Eth1/12 as uplink ports and belong to port-channel 200 Two Cisco Nexus 9000 Series Switches, SW1 and SW2, fail to form a virtual port channel toward both fabric interconnect switches. Which set of ports must be allocated to which port channels to resolve the issue?
Exhibits
Options
- AEth1/8 and Eth1/10 members of port-channel 100
- BEth1/7 and Eth1/12 members of port-channel 110
- CEth1/8 and Eth1/9 members of port-channel 200
- DEth1/12 and Eth1/6 members of port-channel 110
How the community answered
(39 responses)- A85% (33)
- B8% (3)
- C3% (1)
- D5% (2)
Explanation
To form proper vPCs toward each Fabric-Interconnect you must bundle the two links to FI-B into one port-channel and the two links to FI-A into another-and use the same port-channel numbers on both Nexus switches. In this topology: - Port-channel 100 should include the links to FI-B: SW1's Eth1/10 and SW2's Eth1/8 - Port-channel 200 should include the links to FI-A: SW1's Eth1/11 and SW2's Eth1/9 Chosen option correctly assigns Eth1/8 + Eth1/10 to Po100 and Eth1/9 + Eth1/11 to Po200, bringing up both vPCs.
Topics
Community Discussion
No community discussion yet for this question.
