300-615 Question #25: Real Exam Question with Answer & Explanation

The correct answer is C. Configure HSRP version 2.. Cisco NX-OS supports HSRP version 1 by default. You can configure an interface to use HSRP HSRP version 2 has the following enhancements to to HSRP version 1: - Expands the group number range. HSRP version 1 supports group numbers from 0 to 255. HSRP version 2 supports group numb

Question

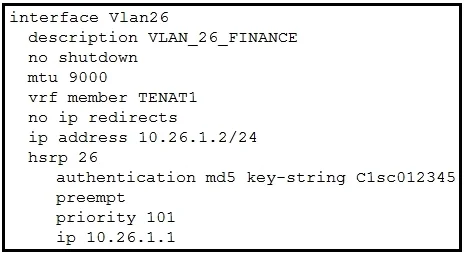

Refer to the exhibit. The HSRP configuration in the exhibit fails to function. Which action resolves this issue?

Exhibit

Options

AEnable IP redirects.
BSet the MTU to 1500 bytes.
CConfigure HSRP version 2.
DConfigure the same HSRP group on both devices.

Explanation

Cisco NX-OS supports HSRP version 1 by default. You can configure an interface to use HSRP HSRP version 2 has the following enhancements to to HSRP version 1: - Expands the group number range. HSRP version 1 supports group numbers from 0 to 255. HSRP version 2 supports group numbers from 0 to 4095. - Uses the new IP multicast address 224.0.0.102 to send hello packets instead of the multicast address of 224.0.0.2, which is used by HSRP version 1. - Uses the MAC address range from 0000.0C9F.F000 to 0000.0C9F.FFFF. HSRP version 1 uses the MAC address range 0000.0C07.AC00 to 0000.0C07.ACFF. - Adds support for MD5 authentication. When you change the HSRP version, Cisco NX-OS reinitializes the group because it now has a new virtual MAC address. HSRP version 2 has a different packet format than HSRP version 1. The packet format uses a type-length-value (TLV) format. HSRP version 2 packets received by an HSRP version 1 router os/unicast/configuration/guide/l3_cli_nxos/l3_hsrp.html#wp1220382
