300-615 · Question #107
Refer to the exhibit. One of the vPC VTEPs fails to route VXLAN traffic to vPC connected hosts. When the issue was being diagnosed, it was discovered that the packets that were expected to be…
The correct answer is C. Configure peer-gateway under the VPC domain on both peers. c/n5k-vpc-cr/n5k-vpc_cmds_show.html
Network
Question
Refer to the exhibit. One of the vPC VTEPs fails to route VXLAN traffic to vPC connected hosts. When the issue was being diagnosed, it was discovered that the packets that were expected to be forwarded to the MAC address on the SWITCH-VTEP-1 are instead forwarded to the MAC address on SWITCH-VTEP-2 and then dropped. Which action resolves the issue?

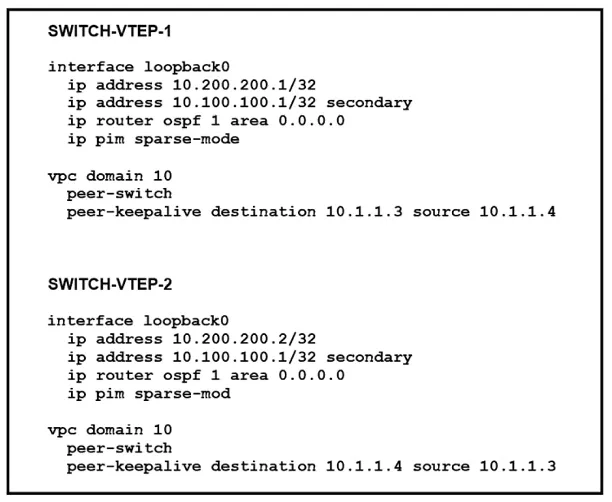

Exhibits
Options
- AConfigure a distributed anycast gateway on both peers
- BConfigure ip arp synchronize under the VPC domain on both peers
- CConfigure peer-gateway under the VPC domain on both peers
- DConfigure a different secondary IP address for one of the vPC peers
How the community answered
(30 responses)- A3% (1)
- B10% (3)
- C80% (24)
- D7% (2)
Explanation
c/n5k-vpc-cr/n5k-vpc_cmds_show.html
Topics
#vPC VTEP#VXLAN#peer-gateway#MAC forwarding
