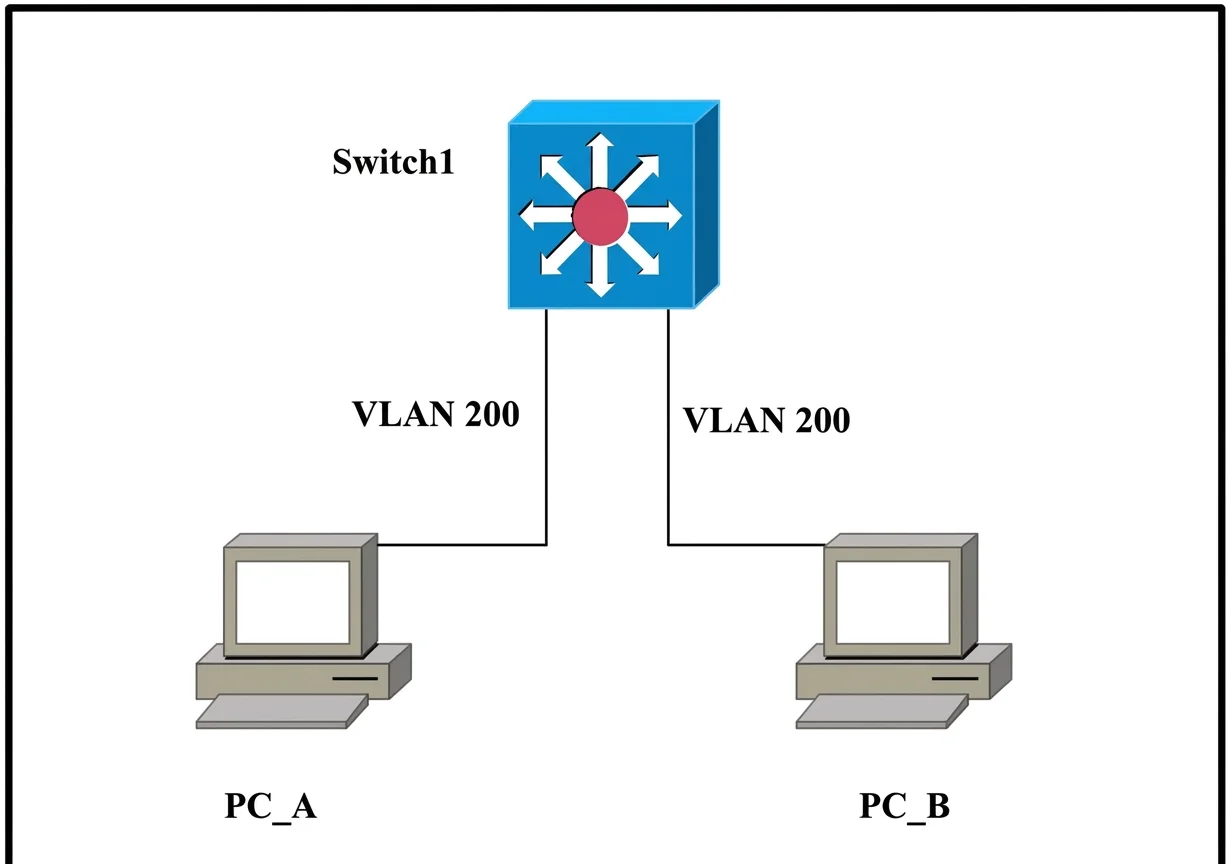

Refer to the exhibit. Which outcome is expected when PC_A sends data to PC_B after their initial communication?

Question

Exhibits

Options

• AThe switch rewrites the source and destination MAC addresses with its own.
• BThe source MAC address is changed.
• CThe source and destination MAC addresses remain the same.
• DThe destination MAC address is replaced with ffff.ffff.ffff.

• A
  16% (9)
• B
  7% (4)
• C
  71% (40)
• D
  5% (3)

Explanation

You have a TCP/IP network. This means that PC A and PC B have an IP address each. PC A knows PC B's address and creates an IP packet for PC B. Then, the packet (Layer 3) becomes an Ethernet frame (Layer 2): PC A gets PC B's MAC address and uses it as the destination L2 When the frame arrives at SW1, the switch looks at the destination MAC address and controls (in its MAC table) to which port that address is associated. Then, the switch sends the frame to PC B through that port (forwarding phase). The switch leaves unchanged BOTH the source and the destination MAC addresses inside the
