Submitted by cyberguy42· Mar 5, 2026Security Fundamentals

Question

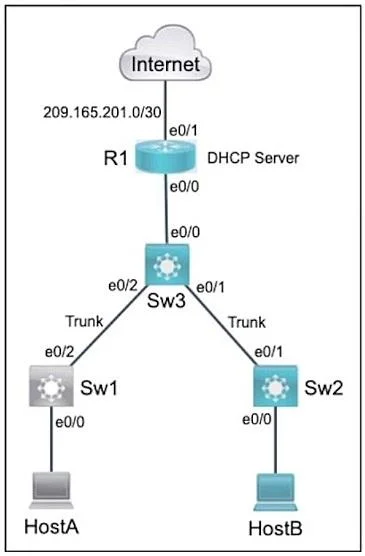

Lab Simulation 32 Guidelines This is a lab item in which tasks will be performed on virtual devices. - Refer to the Tasks tab to view the tasks for this lab item. - Refer to the Topology lab to access the device console(s) and perform the tasks. - Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. - All necessary preconfigurations have been applied. - Do not change the enable password or hostname for any device. - Save your configurations to NVRAM before moving to the next item. - Click Next at the bottom of the screen to submit this lab and move to the next question. - When Next is clicked, the lab closes and cannot be reopened. Topology Tasks Refer to the topology. All physical cabling is in place. Configure local user account, configure a Named ACL (NACL), and Dynamic Arp Inspection. 1. Configure a local account on Sw3 with telnet access only on virtual ports 0-4. Use the following information: - Username: tech12 - Password: load1key - Algorithm type: md5 - Privilege level: Exec mode 2. Configure and apply a NACL on R1 to control network traffic towards ISP: - Name: ISP_ACL - Restrict RFC 1918 class A and B addresses - Allow all other addresses 3. A DHCP IP Pool is preconfigured on R1 for VLAN 5, and DHCP Snooping is configured on Sw2. Configure on Sw2: - Dynamic Arp Inspection for VLAN 5 - Enable validation of the ARP packet destination MAC address - Enable validation of the ARP packet source MAC address - Enable validation of the ARP Packet IP address Answer:

Exhibits

Explanation

Lab Simulation 32 - Detailed Explanation

Overall Goal

This lab covers three distinct but related network security hardening tasks:

Access control - restrict management access to Sw3 via a local account with telnet only
Traffic filtering - prevent RFC 1918 private addresses from leaking out to the ISP
ARP security - protect VLAN 5 from ARP spoofing/poisoning attacks

Task 1: Local Account + Telnet-Only on Sw3

Why this approach: Cisco switches support local authentication via username entries in the running config. VTY lines (virtual terminal lines) handle remote management sessions. By default they accept both SSH and Telnet, so you must restrict explicitly.

Step	Command	Why It's Necessary
1	`username tech12 algorithm-type md5 secret load1key`	Creates the local user. `algorithm-type md5` sets the hashing algorithm as required. Using `secret` stores it hashed, not plaintext. `privilege 1` is implicit for standard exec mode - add `privilege 1` explicitly if the exam requires it.
2	`service password-encryption`	Encrypts any plaintext passwords in the config. Note: When using `secret`, this is largely redundant - secrets are already hashed. However, it's a best-practice catch-all.
3	`line vty 0 4`	Enters configuration for virtual terminal lines 0 through 4 (5 simultaneous sessions).
4	`login local`	Tells the VTY lines to authenticate against the local user database. Without this, the `username` entry is ignored.
5	`transport input telnet`	Restricts the allowed protocol to Telnet only. Default is usually `all` (SSH + Telnet). Omitting this step would leave SSH accessible, violating the task requirement.
6-7	`exit` / `end`	Exits config mode cleanly before saving.

Critical note on the provided answer: Step 1 should be username tech12 algorithm-type md5 secret load1key, not just secret. The task explicitly requires md5 as the algorithm type - this is a testable detail.

What breaks if skipped:

No login local -> VTY lines won't prompt for credentials at all (or use a line password instead)
No transport input telnet -> SSH remains available, failing the "telnet only" requirement

Task 2: Named ACL (ISP_ACL) on R1

Why this approach: A Named Extended ACL gives you readable names and the ability to add/remove individual entries. It must be extended because you're matching on source IP address ranges. It's applied outbound on the interface facing the ISP to block RFC 1918 addresses from leaving your network.

Step	Command	Why It's Necessary
8	`ip access-list extended ISP_ACL`	Creates a named extended ACL. `extended` allows source/destination matching. Standard ACLs only match source, but extended is needed here for proper traffic direction control.
9	`deny ip 10.0.0.0 0.255.255.255 any`	Blocks RFC 1918 Class A range (10.0.0.0/8). The wildcard `0.255.255.255` matches any address starting with 10.
10	`deny ip 172.16.0.0 0.15.255.255 any`	Blocks RFC 1918 Class B range (172.16.0.0/12 = 172.16-172.31). The provided answer uses `0.0.255.255` which is INCORRECT - that only matches 172.16.x.x (a /16). The correct wildcard for the full /12 block is `0.15.255.255`.
11	`permit ip any any`	ACLs have an implicit `deny all` at the end. Without an explicit permit, ALL traffic would be blocked - only the RFC 1918 denies are intended.
12	`exit`	Returns to global config to apply the ACL.
13	`interface e0/1`	Enters the ISP-facing interface. The interface name may vary - identify it from the topology.
14	`ip access-group ISP_ACL out`	Applies the ACL outbound on the ISP interface. Outbound is correct because you want to filter what leaves toward the ISP, not what enters from it.

What breaks if skipped:

No permit ip any any -> implicit deny drops all traffic, cutting internet connectivity entirely
Applied in instead of out -> filters inbound ISP traffic instead of outbound private traffic (wrong direction)
Wrong wildcard on 172.16 -> 172.17-172.31 addresses leak to the ISP

Task 3: Dynamic ARP Inspection (DAI) on Sw2

Why this approach: DAI protects against ARP spoofing by validating ARP packets against the DHCP snooping binding table. Since DHCP snooping is already configured (pre-configured on Sw2), DAI can leverage that table immediately.

Step	Command	Why It's Necessary
16	`ip arp inspection vlan 5`	Enables DAI for VLAN 5. All untrusted ports in VLAN 5 will now have ARP packets validated. Without this, none of the validation rules do anything.
17-19	`ip arp inspection validate dst-mac src-mac ip`	Enables three additional ARP packet checks: dst-mac checks that the Ethernet destination MAC matches the ARP target MAC; src-mac checks Ethernet source MAC matches ARP sender MAC; ip drops packets with invalid/unexpected IP addresses (0.0.0.0, broadcast IPs, etc.).

Critical note on the provided answer: Steps 17, 18, and 19 are shown as three separate commands. On Cisco IOS, each ip arp inspection validate command OVERWRITES the previous one. The correct approach is a single combined command:
ip arp inspection validate dst-mac src-mac ip
If entered as three separate lines as shown, only ip validation would be active after step 19.

What breaks if skipped:

No ip arp inspection vlan 5 -> the validate commands are configured but never triggered
Separate validate commands instead of combined -> only the last one takes effect, leaving src-mac and dst-mac unvalidated

Memory Tips

Task	Mnemonic
VTY config order	Line -> Login local -> Transport - "LLT: Let Local Telnet in"
ACL deny order matters	Specific denies first, broad permit last - "Deny the bad, then allow the rest"
DAI validate	One combined command: `dst-mac src-mac ip` - "Dogs Sit Inside"
ACL direction	Block what leaves toward ISP -> outbound on the ISP interface

Save to NVRAM

Always finish each device with:

end
write memory

or copy running-config startup-config - required by the lab instructions before clicking Next.
