Refer to the exhibit. Which item does B represent?

The correct answer is D. PCle Riser 2. This question tests the ability to identify rear-panel hardware components on a Cisco UCS rack server from a labeled diagram.

Cisco Data Center Equipment and Related Hardware

Question

Refer to the exhibit. Which item does B represent?

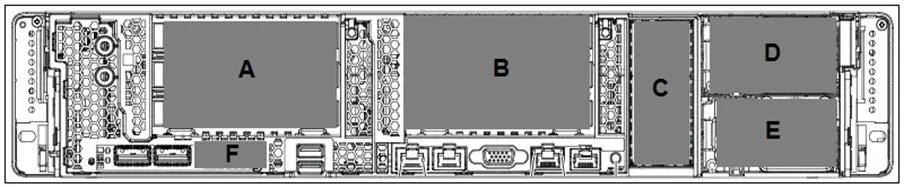

Exhibit

010-151 question #123 exhibit

Options

  • AmLOM
  • BRear 2.5-inch drive bays
  • CPCle Riser 1
  • DPCle Riser 2
  • EPower Supply

How the community answered

(45 responses)
  • A
    2% (1)
  • B
    11% (5)
  • C
    4% (2)
  • D
    80% (36)
  • E
    2% (1)

Why each option

This question tests the ability to identify rear-panel hardware components on a Cisco UCS rack server from a labeled diagram.

AmLOM

The mLOM slot is a dedicated modular LAN-on-Motherboard connector designed specifically for Cisco VIC adapters and occupies a separate, distinct location from PCIe riser slots.

BRear 2.5-inch drive bays

Rear 2.5-inch drive bays are hot-swap storage enclosures with drive handles and activity LEDs, making them visually and functionally distinct from a PCIe riser card slot.

CPCle Riser 1

PCIe Riser 1 occupies a different physical position on the server rear panel than Riser 2 and is a separate labeled component in the same diagram.

DPCle Riser 2Correct

PCIe Riser 2 is the second modular PCIe expansion riser on Cisco UCS C-Series rack servers, mounted at the rear of the chassis in a dedicated slot separate from Riser 1. It accepts standard PCIe expansion cards such as additional NICs, HBAs, or GPUs, and its position in the server diagram corresponds to label B as shown in the exhibit.

EPower Supply

Power supply units are housed in dedicated bays at the rear of the server with connector ports and status LEDs, and are clearly distinguishable from PCIe riser expansion slots.

Concept tested: Cisco UCS C-Series server rear panel component identification

Source: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/hw/C220M5/install/C220M5.html

Topics

#PCIe Riser#rack server components#mLOM#UCS C-Series
