Refer to the exhibit. Which Cisco MDS chassis supports the 48-Port 16-Gbps Fibre Channel Switching Module?

The correct answer is C. MDS 9710. The 48-Port 16-Gbps Fibre Channel Switching Module requires the second-generation MDS 9700 platform, making the MDS 9710 the only correct answer among the choices.

Cisco Data Center Equipment and Related Hardware

Question

Refer to the exhibit. Which Cisco MDS chassis supports the 48-Port 16-Gbps Fibre Channel Switching Module?

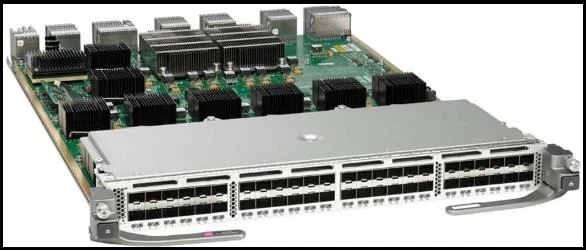

Exhibit

010-151 question #12 exhibit

Options

  • AMDS 9509
  • BMDS 9513
  • CMDS 9710
  • DMDS 9506

How the community answered

(22 responses)
  • A
    5% (1)
  • B
    18% (4)
  • C
    73% (16)
  • D
    5% (1)

Why each option

The 48-Port 16-Gbps Fibre Channel Switching Module requires the second-generation MDS 9700 platform, making the MDS 9710 the only correct answer among the choices.

AMDS 9509

The MDS 9509 is a first-generation director whose slot and backplane design predates and is incompatible with the 48-Port 16-Gbps FC Switching Module.

BMDS 9513

The MDS 9513 is also a first-generation director chassis and does not support the 48-Port 16-Gbps module, which is exclusive to the second-generation MDS 9700 platform.

CMDS 9710Correct

The Cisco MDS 9710 is a 10-slot second-generation director belonging to the MDS 9700 series, which introduced the backplane bandwidth and slot architecture required to support the 48-Port 16-Gbps FC Switching Module (DS-X9648-768K9); first-generation directors cannot accommodate this module.

DMDS 9506

The MDS 9506 is a smaller first-generation chassis that lacks the hardware and backplane capacity required by the 48-Port 16-Gbps FC Switching Module.

Concept tested: Cisco MDS 9710 48-port 16-Gbps FC module compatibility

Source: https://www.cisco.com/c/en/us/products/storage-networking/mds-9710-multilayer-director/index.html
