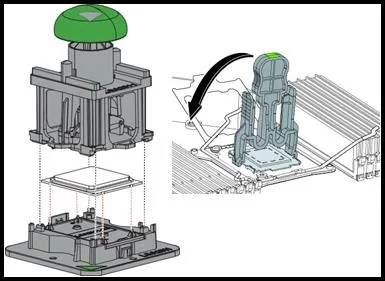

Refer to the exhibit. This image shows a CPU Pick-and-Place tool and a CPU Socket Protective Cap Removal tool. Which types of Cisco UCS servers and Intel Xeon processors do these tools support?

Question

Accepted Answer

D. Cisco UCS B200 M3 Blade Server, B420 M3 Blade Server, C220 Rack Server, C240 Rack Sever, The B200 M3, B420 M3, C220, and C240 are all third-generation UCS platforms using the LGA 2011 socket with Intel Xeon E5-2600 series processors, which require precision pick-and-place tooling to safely seat the processor and remove socket protective caps without bending pins.

Answer

A. Cisco UCS B22 Blade Server, C22 Rack Server, and C24 Rack Sever with Intel Xeon E5-2400 The B22, C22, and C24 servers use the LGA 1356 socket with Intel Xeon E5-2400 processors and require different installation tooling than what is depicted.

Answer

B. Cisco UCS B22 Blade Server, C22 Rack Server, and C24 Rack Sever with Intel Xeon E5-2600 While listing Intel Xeon E5-2600 processors, the B22, C22, and C24 server models do not use the same socket or tooling as the B200 M3 and C220/C240 platforms.

Answer

C. Cisco UCS B200 M3 Blade Server, B420 M3 Blade Server, C220 Rack Server, C240 Rack Sever, The server models listed in choice C match the correct platforms but the processor family specified differs from the E5-2600 series that these tools are designed to support.
