Drag and Drop Question A company uses Dynamics 365 Finance. You create the following tables: You need to configure the system to meet the requirements. Which delete actions should you use? To…

The correct answer is Cascade; Restricted; Cascade+Restricted. Dynamics 365 Finance: Table Delete Actions Explained This question tests your knowledge of delete action types used in table relationships (defined via X++ or the AOT). Delete actions control what happens to child records when a parent record is deleted. --- The Three Delete…

Design and develop AOT elements

Question

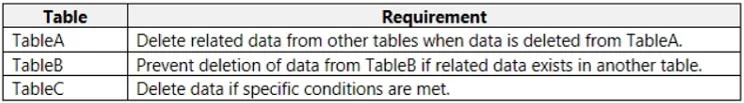

Drag and Drop Question A company uses Dynamics 365 Finance. You create the following tables: You need to configure the system to meet the requirements. Which delete actions should you use? To answer, drag the appropriate delete action types to the correct scenarios. Each delete action may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point. Answer:

Exhibits

Answer Area

Drag items

CascadeRestrictedCascade+Restricted

Correct arrangement

Cascade
Restricted
Cascade+Restricted

Explanation

Dynamics 365 Finance: Table Delete Actions Explained

This question tests your knowledge of delete action types used in table relationships (defined via X++ or the AOT). Delete actions control what happens to child records when a parent record is deleted.

The Three Delete Action Types

Type	Behavior
Cascade	Automatically deletes all related child records when the parent is deleted
Restricted	Prevents deletion of the parent if any child records exist
Cascade+Restricted	Blocks direct deletion if children exist, but allows cascade deletion triggered from a grandparent

Why Each Placement is Correct

Position 1 → Cascade Used when child records have no independent meaning without the parent. Classic example: Sales Order Lines must be deleted when the Sales Order Header is deleted. The child records are owned by the parent, so cascading is safe and expected.

Position 2 → Restricted Used when deleting the parent would create a data integrity problem. Classic example: You cannot delete a Customer record if open invoices or transactions exist. The system blocks the delete and forces the user to clean up children first.

Position 3 → Cascade+Restricted Used for intermediate (middle-tier) tables in a 3-level hierarchy (e.g., A → B → C). The behavior is dual:

If someone tries to delete B directly and C records exist → blocked (Restricted behavior)
If A is deleted and cascades to B → B's delete then cascades down to C automatically

This handles the chain-delete scenario cleanly without orphaning grandchild records.

Common Mistakes

Confusing Cascade+Restricted with "both": It is not simply "Cascade AND Restricted applied separately." It specifically means restricted on direct delete, cascade on inherited delete.
Using Cascade everywhere: Cascade on a lookup/reference table (like a shared code table) would wipe out unrelated records - use Restricted there instead.
Forgetting Cascade+Restricted for middle tables: A common error is putting plain Cascade on a middle table, which means directly deleting the middle record also silently deletes grandchildren - bypassing the protection the business may require.

Topics

#delete actions#cascade delete#restricted delete#table relationships
