HPE7-A08 · Question #174
Refer to the partial exhibit from an HPE Aruba Networking CX 8325: A new port on 1/1/25 must be reconfigured for an ISP router with the IP address of 10.10.10.2/30. What is the correct configuration t
The correct answer is C. interface 1/1/25 no shutdown routing ip address 10.10.10.2/30 exit. To connect an ISP router, the switch port must operate as a routed Layer-3 interface, not as an access or trunk port. This is done by enabling routing directly on the interface and assigning the IP address on that physical port, avoiding participation in any VLAN that could creat
Question
Refer to the partial exhibit from an HPE Aruba Networking CX 8325:
A new port on 1/1/25 must be reconfigured for an ISP router with the IP address of 10.10.10.2/30. What is the correct configuration to achieve the layer-3 configuration without the risks of layer-2 loops? A. B. C. D.

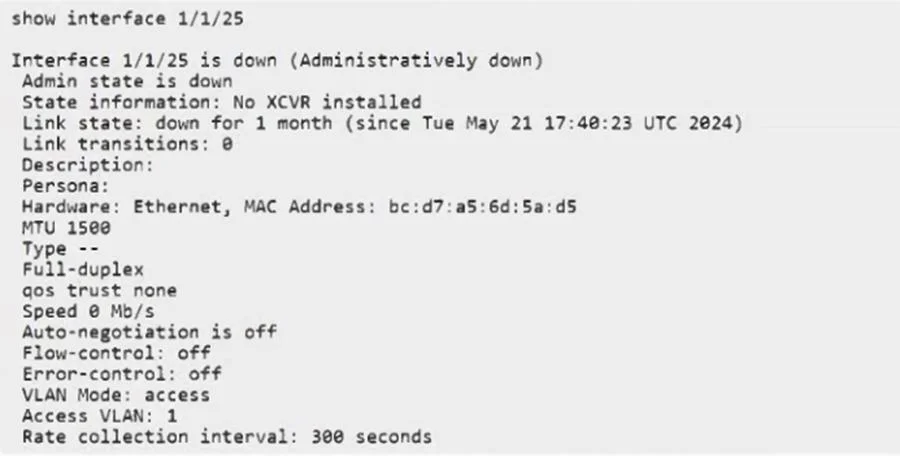

Exhibit
Options
- Ainterface 1/1/25 no shutdown vlan access 1 exit ! interface vlan 1 ip address 10.10.10.2/30 exit
- Binterface 1/1/25 enable routing ip address 10.10.10.2/30 exit
- Cinterface 1/1/25 no shutdown routing ip address 10.10.10.2/30 exit
- Dinterface 1/1/25 enable vlan access 1 exit ! interface vlan 1 ip address 10.10.10.2/30 exit
How the community answered
(28 responses)- A14% (4)
- B4% (1)
- C71% (20)
- D11% (3)
Explanation
To connect an ISP router, the switch port must operate as a routed Layer-3 interface, not as an access or trunk port. This is done by enabling routing directly on the interface and assigning the IP address on that physical port, avoiding participation in any VLAN that could create Layer-2 loops. The configuration that sets routing, applies ip address 10.10.10.2/30, and brings the port up with no shutdown on interface 1/1/25 satisfies these requirements.
Topics
Community Discussion
No community discussion yet for this question.
