HPE7-A08 · Question #173
You have connected a new Access switch to an existing Aggregation switch on port 1/1/24, but the link will not stay active. You can see the following log messages from Agg-1. What do you need to…
The correct answer is D. Disable BPDU guard. The log shows “BPDU received on protected port - Port 1/1/24 disabled”, which is the behavior of Because the port is intended to connect to another switch (which legitimately sends BPDUs), BPDU Guard must be disabled so the link remains active.
Question
You have connected a new Access switch to an existing Aggregation switch on port 1/1/24, but the link will not stay active. You can see the following log messages from Agg-1. What do you need to configure on port 1/1/24 to resolve the issue?

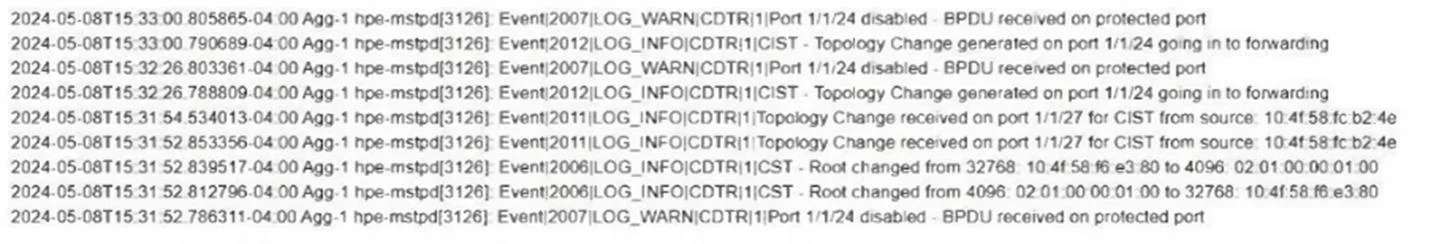

Exhibit
Options
- ADisable MSTP guard
- BDisable BPDU filter.
- CDisable loop protect.
- DDisable BPDU guard.
How the community answered
(68 responses)- A18% (12)
- B7% (5)
- C4% (3)
- D71% (48)
Explanation
The log shows “BPDU received on protected port - Port 1/1/24 disabled”, which is the behavior of Because the port is intended to connect to another switch (which legitimately sends BPDUs), BPDU Guard must be disabled so the link remains active.
