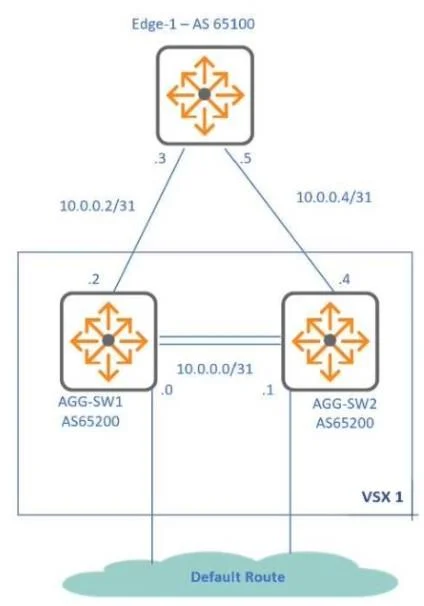

Refer to the exhibit. What needs to be defined on Edge-1 to establish valid BGP routing between agg-sw1 and agg- sw2 using BGP protocol using the IP addresses described in the image above? A. B. C. D.

Question

Exhibits

Options

• Arouter bgp 65100 neighbor 10.0.0.4 remote-as 65200 neighbor 10.0.0.4 remote-as 65200 address-family ipv4 unicast neighbor 10.0.0.4 update-source loopback 0 neighbor 10.0.0.4 update-source loopback 0
• Brouter bgp 65100 10.0.0.2 remote-as 65200 10.0.0.4 remote-as 65200 address-family ipv4 unicast neighbor 10.0.0.4 router-reflector-client neighbor 10.0.0.4 router-reflector-client
• Crouter bgp 65100 10.0.0.2 remote-as 65200 10.0.0.4 remote-as 65200 address-family ipv4 unicast neighbor 10.0.0.2 default-originate neighbor 10.0.0.4 default-originate
• Drouter bgp 65100 10.0.0.2 remote-as 65200 10.0.0.4 remote-as 65200 address-family ipv4 unicast neighbor 10.0.0.2 activate neighbor 10.0.0.4 activate

• A
  2% (1)
• B
  4% (2)
• C
  9% (5)
• D
  85% (46)

Explanation

On AOS-CX, when using address-family ipv4 unicast, each BGP neighbor must be explicitly activated under the AFI/SAFI to exchange routes. Adding neighbor 10.0.0.2 activate and neighbor 10.0.0.4 activate on Edge-1 enables proper route advertisement between the two eBGP peers.

No community discussion yet for this question.
