Refer to the exhibit. What conclusions can you draw about the traffic received by FortiGate originating from the source LAN device 10.0.1.133 and destined for the company's SMTP mail server at…

The correct answer is D. FortiGate steers the traffic from the LAN device 10.0.1.133 to the SMTP mail server 10.66.0.125. The policy-route output shows the matching SD-WAN service for destination 10.66.0.0/24 is vwl_service=4 (LAN-to-Corp2) with vwl_mbr_seq=1 2 and paths oif=3(port1) and oif=4(port2). Therefore, traffic from 10.0.1.133 to 10.66.0.125 is steered via SD-WAN member ID 1 or 2.

SD-WAN Business Application Policies

Question

Refer to the exhibit. What conclusions can you draw about the traffic received by FortiGate originating from the source LAN device 10.0.1.133 and destined for the company’s SMTP mail server at 10.66.0.125?

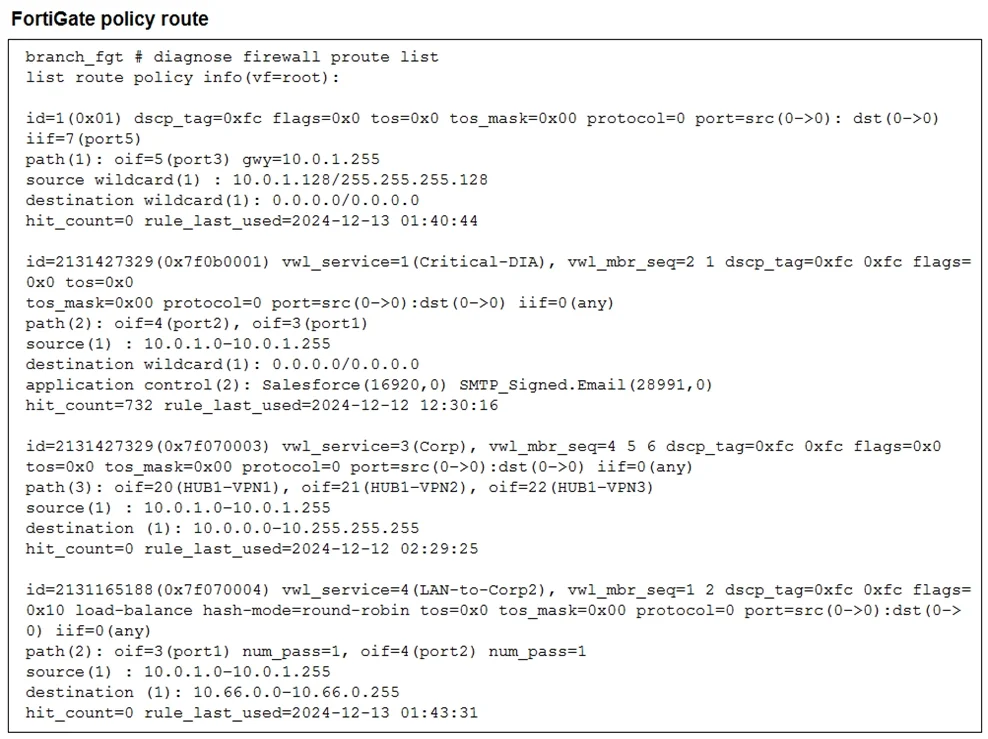

Exhibit

Options

AFortiGate steers the traffic from the LAN device 10.0.1.133 to the company SMTP mail server
BForliGate steers the traffic from the LAN device 10.0.1.133 to the company SMTP mail server
CFortiGate steers the traffic from the LAN device 10.0.1.133 to the company SMTP mail server
DFortiGate steers the traffic from the LAN device 10.0.1.133 to the SMTP mail server 10.66.0.125

How the community answered

(33 responses)

A
3% (1)
B
3% (1)
C
9% (3)
D
85% (28)

Explanation

The policy-route output shows the matching SD-WAN service for destination 10.66.0.0/24 is vwl_service=4 (LAN-to-Corp2) with vwl_mbr_seq=1 2 and paths oif=3(port1) and oif=4(port2). Therefore, traffic from 10.0.1.133 to 10.66.0.125 is steered via SD-WAN member ID 1 or 2.

Topics

#traffic steering#SD-WAN rule matching#SMTP traffic#source IP lookup

Community Discussion

No community discussion yet for this question.
