Fortinet
FCSS_NST_SE-7.4 · Question #64
Refer to the exhibit. The exhibit shows the output from using the command diagnose debug application samld -1 to diagnose a SAML connection. Based on this output, what can you conclude?
The correct answer is D. The IdP IP address is 10.1.10.2. The SAML AuthnRequest's Destination and RemoteProviderID URLs both point to https://10.1.10.2, indicating the IdP's IP address is 10.1.10.2.
Troubleshooting Methodology and Tools
Question
Refer to the exhibit. The exhibit shows the output from using the command diagnose debug application samld -1 to diagnose a SAML connection. Based on this output, what can you conclude?

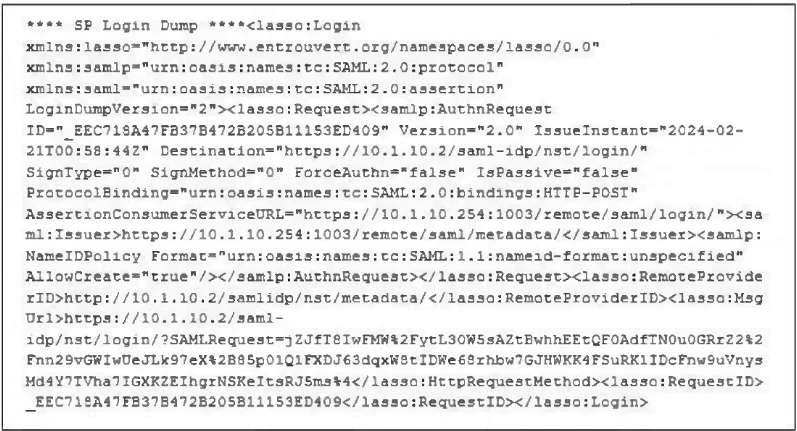

Exhibit
Options
- AActive Directory is used for authentication.
- BThe authentication request is for an SSL VPN connection.
- CThe IdP IP address is 10.1.10.254.
- DThe IdP IP address is 10.1.10.2.
How the community answered
(63 responses)- A6% (4)
- B3% (2)
- C13% (8)
- D78% (49)
Explanation
The SAML AuthnRequest's Destination and RemoteProviderID URLs both point to https://10.1.10.2, indicating the IdP's IP address is 10.1.10.2.
Topics
#SAML#IdP address#SAML debug#SSL VPN authentication
Community Discussion
No community discussion yet for this question.
