FCP_FGT_AD-7.6 · Question #82

Refer to the exhibits. A diagram of a FortiGate device connected to the network VIP object and firewall policy configurations are shown. The WAN (port2) interface has the IP address 100.65.0.101/24…

The correct answer is D. 100.65.1.111, 10.0.11.50, and 4443, respectively. The VIP object maps the external IP 100.65.0.200:443 to the internal server 10.0.11.50:4443. Since NAT is disabled on the firewall policy, the source IP is preserved. So, when host 100.65.1.111 connects to 100.65.0.200:443: - The source remains 100.65.1.111. - The destination…

Submitted by chiamaka_o· Apr 18, 2026Firewall policies and authentication

Question

Refer to the exhibits. A diagram of a FortiGate device connected to the network VIP object and firewall policy configurations are shown. The WAN (port2) interface has the IP address 100.65.0.101/24. The LAN (port4) interface has the IP address 10.0.11.254/24. If the host 100.65.1.111 sends a TCP SYN packet on port 443 to 100.65.0.200, what will the source address, destination address, and destination port of the packet be at the time FortiGate forwards the packet to the destination? 10.0.11.254, 10.0.15.50, and 4443, respectively A.

Exhibits

FCP_FGT_AD-7.6 question #82 exhibit 1

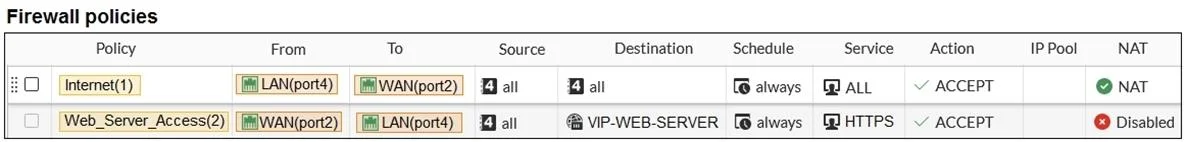

FCP_FGT_AD-7.6 question #82 exhibit 2

Options

  • B100.65.1.111, 10.0.11.50 and 443, respectively
  • C10.0.11.254, 100.65.0.200, and 443, respectively
  • D100.65.1.111, 10.0.11.50, and 4443, respectively

How the community answered

(28 responses)
  • B
    7% (2)
  • C
    14% (4)
  • D
    79% (22)

Explanation

The VIP object maps the external IP 100.65.0.200:443 to the internal server 10.0.11.50:4443. Since NAT is disabled on the firewall policy, the source IP is preserved. So, when host 100.65.1.111 connects to 100.65.0.200:443: - The source remains 100.65.1.111. - The destination IP is translated to 10.0.11.50. - The destination port is translated to 4443.

Topics

#Virtual IP (VIP)#Port Forwarding#NAT (Network Address Translation)#Firewall Policy

Community Discussion

No community discussion yet for this question.
