FCP_FGT_AD-7.6 · Question #65

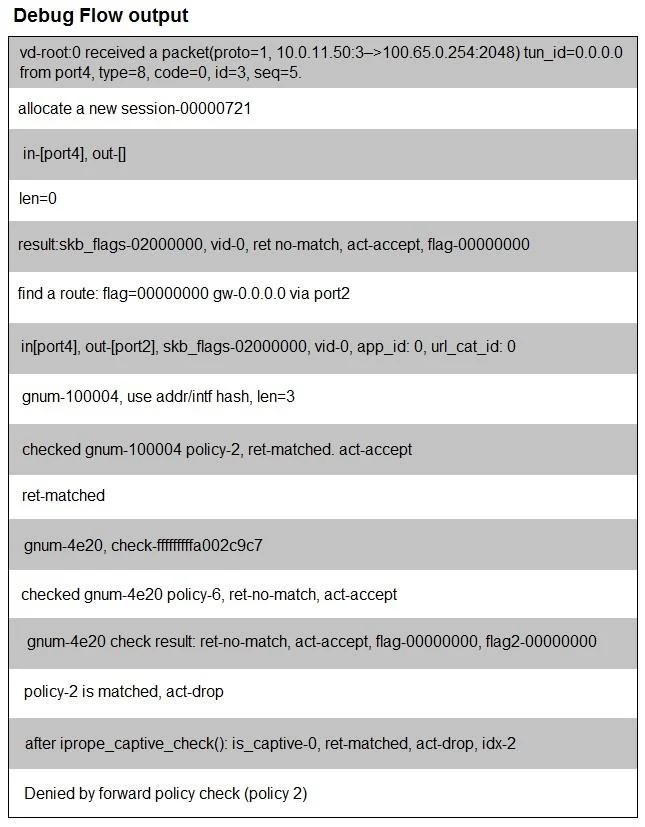

Refer to the exhibit showing a debug flow output. Which two conclusions can you make from the debug flow output? (Choose two.)
The correct answer is A. The default gateway is configured on port2. D. The matching firewall policy denies the traffic. The default gateway is configured on port2 → The debug output shows find a route: flag=00000000 gw-0.0.0.0 via port2, which indicates that the default route (0.0.0.0/0) points out The matching firewall policy denies the traffic → The log line Denied by forward policy check…
Question
Refer to the exhibit showing a debug flow output. Which two conclusions can you make from the debug flow output? (Choose two.)
Exhibit
Options
- AThe default gateway is configured on port2.
- BThe RPF check fails.
- CThe debug flow is for UDP traffic.
- DThe matching firewall policy denies the traffic.
How the community answered
(34 responses)- A71% (24)
- B12% (4)
- C18% (6)
Explanation
The default gateway is configured on port2 → The debug output shows find a route: flag=00000000 gw-0.0.0.0 via port2, which indicates that the default route (0.0.0.0/0) points out The matching firewall policy denies the traffic → The log line Denied by forward policy check (policy 2) confirms that policy 2 matched and explicitly dropped the traffic.
