Refer to the exhibit. Which two statements are true about the routing entries in this database table? (Choose two.)

Question

Exhibit

Options

• AAll of the entries in the routing database table are installed in the FortiGate routing table.
• BThe port2 interface is marked as inactive.
• CBoth default routes have different administrative distances.
• DThe default route on port2 is marked as the standby route.

• A
  11% (2)
• B
  21% (4)
• C
  68% (13)

Explanation

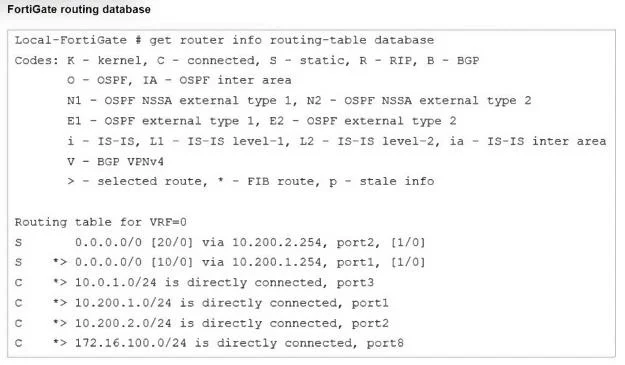

The routing table in the exhibit shows two default routes (0.0.0.0/0) with different administrative The default route through port2 has an administrative distance of 20. The default route through port1 has an administrative distance of 10. Administrative distance determines the priority of the route; a lower value is preferred. Here, the route through port1 with an administrative distance of 10 is the preferred route. The route through port2 with an administrative distance of 20 acts as a standby or backup route. If the primary route (port1) fails or is unavailable, traffic will then be routed through port2. Regarding the statement that the port2 interface is marked as inactive, there is no indication in the routing table that port2 is inactive. Similarly, all the routes displayed are not necessarily installed in the FortiGate routing table, as the table could include both active and backup routes.
