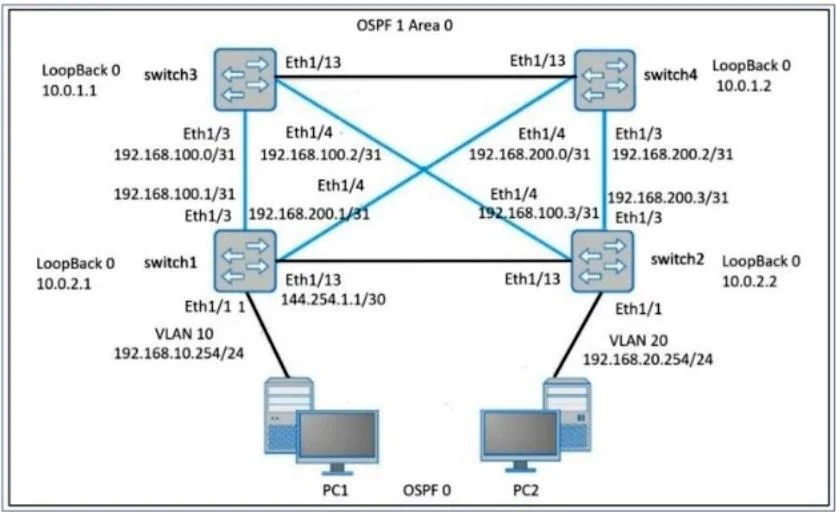

Refer to the exhibits.PC1 has a valid address on the 192.168.10.0 network, and PC2 has a valid address on the 192.168.20.0 network. What happens when a ping command is issued between PC1 and PC2?

Question

Exhibits

Options

• AThe ping is successful because there is a route to 10.0.1.1, which is connected to 1(10.2.2, which
• BThe ping is unsuccessful because there is no route to the VLAN 10 gateway address of
• CThe ping is successful because there are two routes from switch1 to switch2 which are connected
• DThe ping is unsuccessful because there is no route from switch 1 to the 192.168.20.0 network.

• A
  5% (2)
• B
  12% (5)
• C
  24% (10)
• D
  59% (24)

Explanation

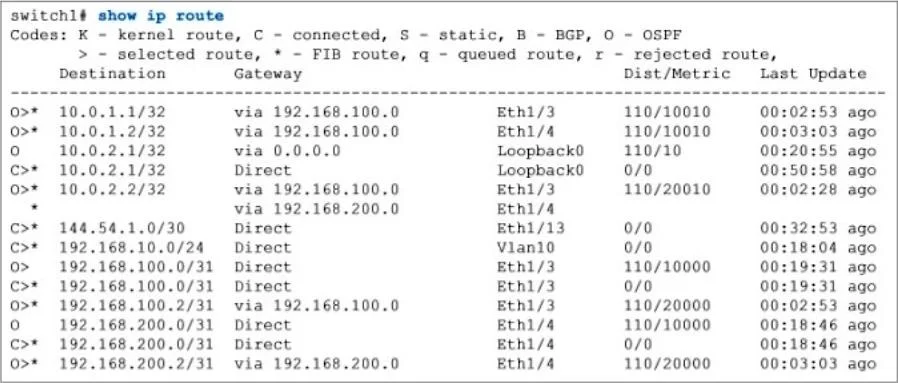

For PC1 to communicate with PC2, switch1 must have a route to the 192.168.20.0/24 network. The absence of a route to the 192.168.20.0/24 network in switch1's routing table means that switch1 cannot forward packets destined for 192.168.20.0/24. Therefore, any ping from PC1 to PC2 will be unsuccessful as switch1 does not know how to route packets to PC2's network.
