AZ-104 · Question #527
You have an Azure subscription that contains the resources shown in the following table. LB1 is configured as shown in the following table. You plan to create new inbound NAT rules that meet the…
The correct answer is A. A frontend IP address. Key is port 3389 from the internet for both VMs. If we want to connect to two different machines on the same port we need to have two different frontend IPs for the port forwarding.
Submitted by tom_us· Mar 4, 2026Configure and manage virtual networking
Question

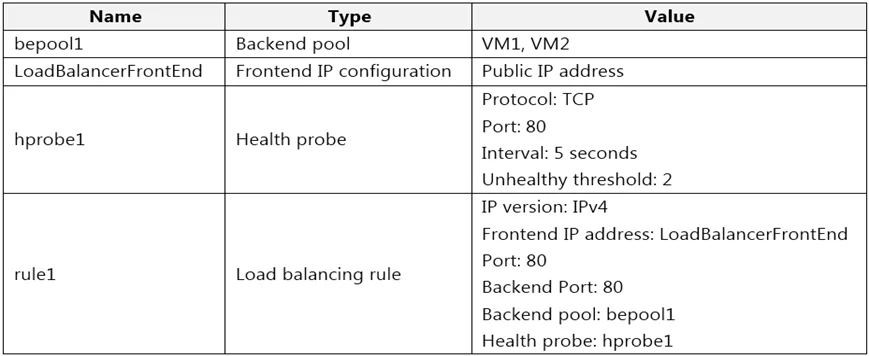

You have an Azure subscription that contains the resources shown in the following table. LB1 is configured as shown in the following table. You plan to create new inbound NAT rules that meet the following requirements: - Provide Remote Desktop access to VM1 from the internet by using port 3389. - Provide Remote Desktop access to VM2 from the internet by using port 3389. What should you create on LB1 before you can create the new inbound NAT rules?
Exhibits
Options
- AA frontend IP address
- BA health probe
- CA load balancing rule
- DA backend pool
How the community answered
(26 responses)- A73% (19)
- B8% (2)
- C4% (1)
- D15% (4)
Explanation
Key is port 3389 from the internet for both VMs. If we want to connect to two different machines on the same port we need to have two different frontend IPs for the port forwarding.
Community Discussion
No community discussion yet for this question.
