70-243 · Question #44

Note: This question is part of a series of questions that use the same set of answer choices. An answer choice may be correct for more than one question in the series. Your network contains a System C

The correct answer is C. Install a PXE-enabled protected distribution point on Server5.. Administration, Site config, Servers and Site System Roles, DP role, properties, PXE tab

Managing Operating System Deployment (OSD)

Question

Note: This question is part of a series of questions that use the same set of answer choices. An answer choice may be correct for more than one question in the series. Your network contains a System Center 2012 Configuration Manager environment as shown in the exhibit. (Click the Exhibit button.) The network contains six servers. The servers are configured as shown in the following table. You plan to deploy servers to the perimeter network by using Configuration Manager. The operating system for each server will be instated over the network. The installations will begin automatically, as soon as each server starts for the first time. You need to recommend a solution to minimize the amount of network traffic between the perimeter network and the internal network during the installation of the operating systems. What should you do?

Exhibits

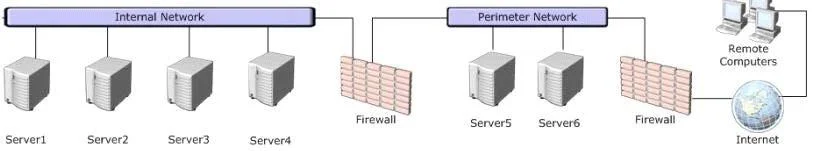

70-243 question #44 exhibit 1

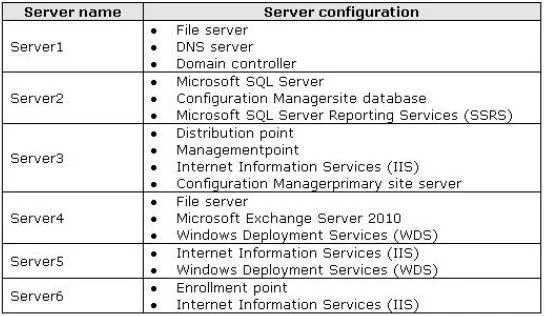

70-243 question #44 exhibit 2

Options

  • AInstall a software update point on Server3.
  • BConfigure IIS to support only HTTP on Server3.
  • CInstall a PXE-enabled protected distribution point on Server5.
  • DInstall a management point on Server5.
  • EInstall Windows Server Update Services (WSUS) on Server3.
  • FInstall Network Load Balancing (NLB) on Server6.
  • GInstall the Windows Cluster service on Server6.
  • HInstall a PXE-enabled protected distribution point on Server4.
  • IInstall a management point on Server2.
  • JInstall a protected distribution point on Server1.

How the community answered

(58 responses)
  • C
    69% (40)
  • D
    9% (5)
  • E
    2% (1)
  • G
    16% (9)
  • H
    3% (2)
  • I
    2% (1)

Explanation

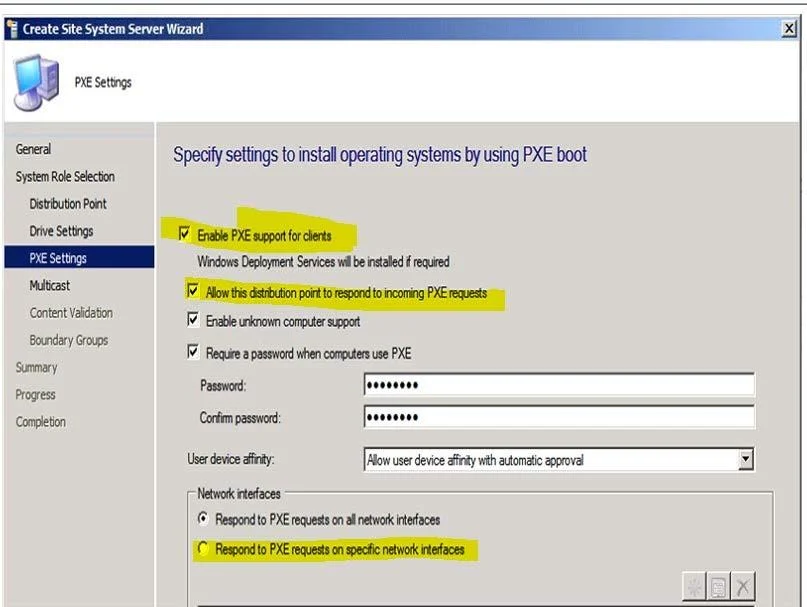

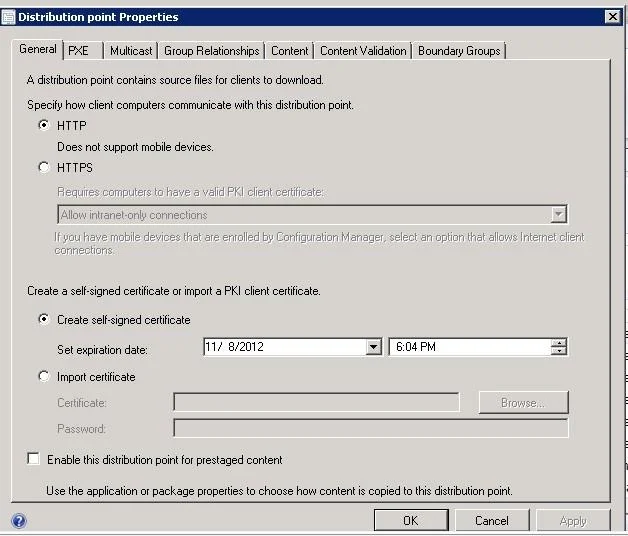

Administration, Site config, Servers and Site System Roles, DP role, properties, PXE tab

Topics

#PXE deployment#perimeter network#protected distribution point#OSD network boot
