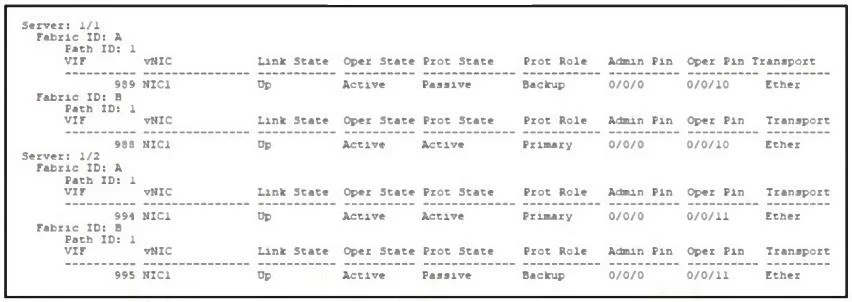

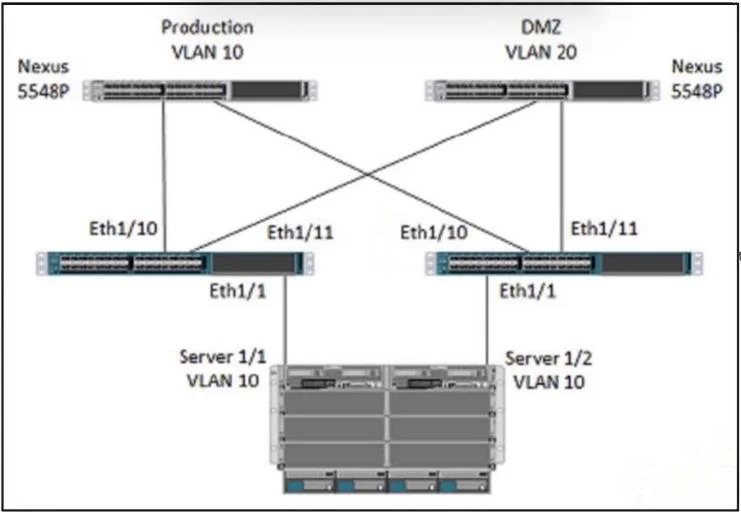

Refer to the exhibit. A Cisco UCS B-Series server 1/1 fails to communicate with server 1/2. Which action resolves the issue?

The correct answer is C. Add VLAN 10 to Eth1/11. The issue is that server 1/1 (VLAN 10) is unable to communicate with server 1/2, which is also in VLAN 10. In the provided topology, it appears that the link on Eth1/11 is missing the VLAN 10 configuration, which is necessary for communication between the servers. VLAN 10 must…

Compute Platforms

Question

Exhibits

Options

ADisable Fabric Failover on NIC1.
BImplement a disjoint Layer 2 topology.
CAdd VLAN 10 to Eth1/11.
DConfigure a port channel on Eth1 /10 and Eth1/11.

How the community answered

(35 responses)

A
3% (1)
B
14% (5)
C
77% (27)
D
6% (2)

Explanation

The issue is that server 1/1 (VLAN 10) is unable to communicate with server 1/2, which is also in VLAN 10. In the provided topology, it appears that the link on Eth1/11 is missing the VLAN 10 configuration, which is necessary for communication between the servers. VLAN 10 must be allowed on all links (including Eth1/11) to ensure proper communication between the servers, as they both belong to VLAN 10. Adding VLAN 10 to Eth1/11 will resolve the communication issue.

Topics

#UCS B-Series#VLAN configuration#fabric interconnect ports#server communication
