300-615 · Question #241
Refer to the exhibit. A Cisco VXLAN must use bidirectional PIM so that: - Spine2 is the active RP for multicast group 225.0.0.0/24. - Loopback 254 is used as a logical interface for PIM…
The correct answer is D. Change the IP address of Loopback 254 to 10.254.254.254 on Spine2. See the full explanation below for the reasoning.
Question
Refer to the exhibit. A Cisco VXLAN must use bidirectional PIM so that:
- Spine2 is the active RP for multicast group 225.0.0.0/24.
- Loopback 254 is used as a logical interface for PIM configuration.
After configuration was applied, Spine1 became the active RP for multicast group 225.0.0.0/24 instead of Spine2. Which action resolves the issue?

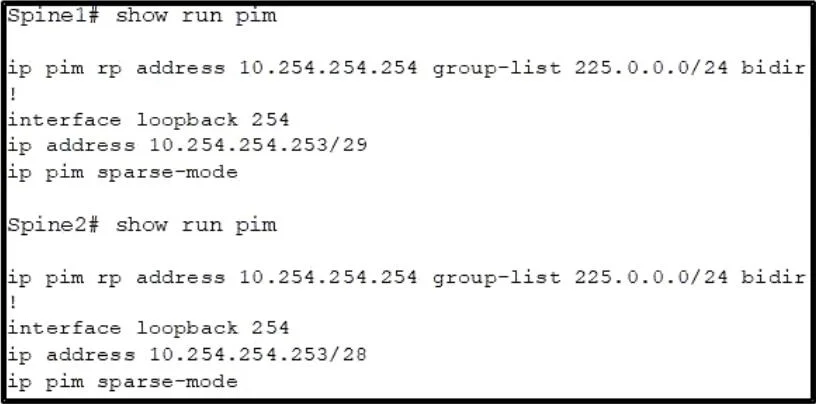

Exhibits
Options
- ADelete the bidir keyword from ip pim rp address command on Spine1.
- BConfigure the IP pim ssm range 232.0.0.0/8 on Spine1.
- CModify the subnet mask of Loopback 254 to /30 on Spine2.
- DChange the IP address of Loopback 254 to 10.254.254.254 on Spine2.
How the community answered
(16 responses)- A6% (1)
- C13% (2)
- D81% (13)
Community Discussion
No community discussion yet for this question.
