Question
Refer to the exhibit. OSPF is used as an underlayer routing protocol in the backbone network of this ISP. A network engineer recently configured R1 with ip cef and mpls label range 1000 2000. Several days later, the engineer replaced a failed RP module on R1. After the replacement, one of the customer’s MPLS LSPs went down with the error message LSP-ERROR-Indication:No Label Resources. Which action must the engineer take to resolve the issue?

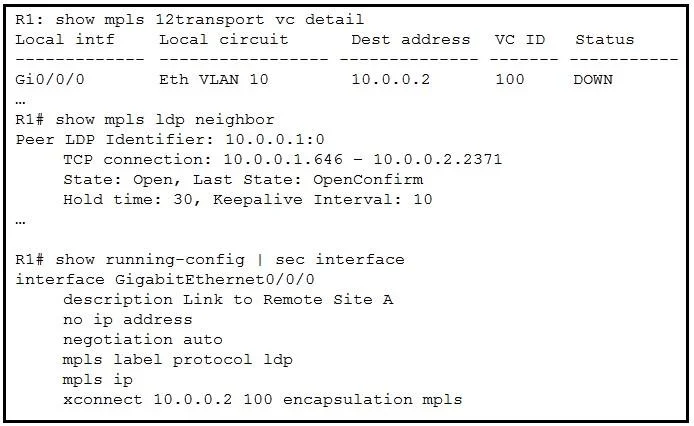

Exhibit
Options
- AConfigure mpls ldp neighbor 10.0.0.2 targeted under the global configuration.
- BConfigure mpls mtu 1600 under interface Gi0/0/0.
- CConfigure xconnect 10.0.0.2 100 encapsulation mpls vian 10 under interface Gi0/0/0.
- DConfigure redistribute connected under the OSPF configuration.
How the community answered
(37 responses)- A84% (31)
- B3% (1)
- C5% (2)
- D8% (3)
Explanation
Because the pseudowire is bound to a non-IP interface (Gi0/0/0 has “no ip address”), LDP must be run as a targeted session over the loopback addresses. Replacing the RP module cleared that neighbor relationship, so you must re-establish it with the mpls ldp neighbor 10.0.0.2 targeted
Topics
Community Discussion
No community discussion yet for this question.
