Advanced Enterprise Campus Networks

Question

Refer to the exhibit. These requirements must be met:

VLANs span multiple access switches.
All VLANs are trunked on all access switch uplinks to distribution

switches.

The STP version is Rapid PVST+.

Which design provides the fastest spanning-tree convergence?

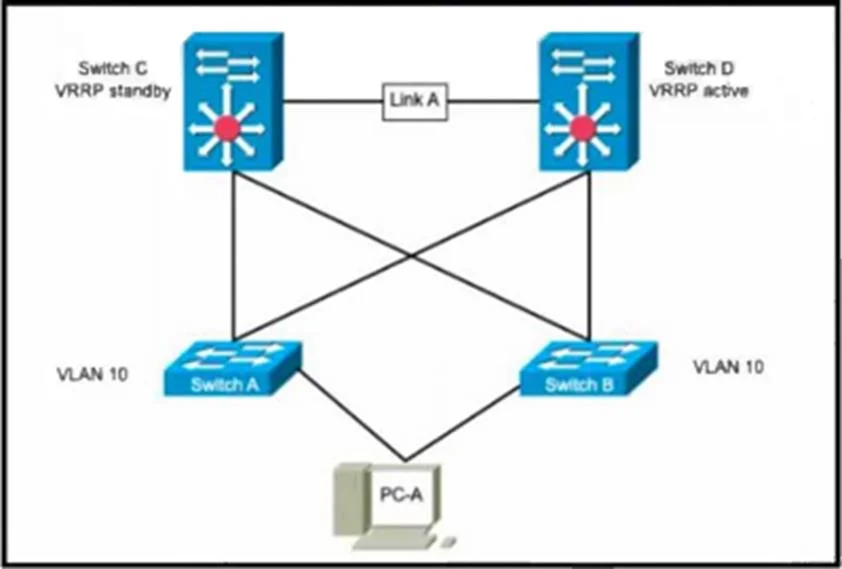

Exhibit

Options

A
- switch D configured as VLAN 10 secondary root
B
- switch D configured as VLAN 10 secondary root
C
- switch D configured as VLAN 10 primary root
D
- switch D configured as VLAN 10 primary root

How the community answered

(44 responses)

A
7% (3)
B
18% (8)
C
2% (1)
D
73% (32)

Explanation

Configuring link A as a Layer 3 routed link removes it from the Layer 2 topology, reducing the number of potential STP paths and preventing loops. Setting switch D as primary root and switch C as secondary root for VLAN 10 ensures predictable and optimal spanning-tree convergence with Rapid PVST+.

Topics

#Spanning Tree Protocol#Rapid PVST+ Configuration#VLAN Design#Campus Network Convergence

Community Discussion

No community discussion yet for this question.
