300-420 · Question #26

Refer to the exhibit. An engineer must optimize the traffic flow of the network. Which change provides a more efficient design between the access and the distribution layer?

The correct answer is B. Reconfigure the distribution switch A to become the HSRP Active. To optimize traffic flow between the access and distribution layer, reconfiguring Distribution Switch A to become the HSRP Active gateway is the most efficient change.

Advanced Enterprise Campus Networks

Question

Refer to the exhibit. An engineer must optimize the traffic flow of the network. Which change provides a more efficient design between the access and the distribution layer?

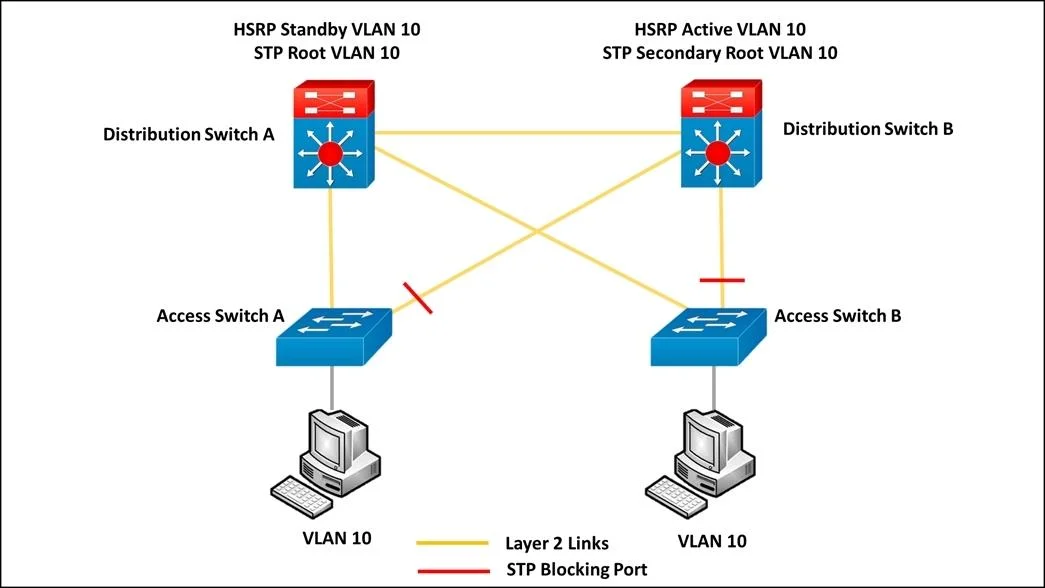

Exhibit

300-420 question #26 exhibit

Options

  • AAdd a link between access switch A and access switch B
  • BReconfigure the distribution switch A to become the HSRP Active
  • CChange the link between distribution switch A and distribution switch B to be a routed link
  • DCreate an EtherChannel link between distribution switch A and distribution switch B

How the community answered

(57 responses)
  • A
    16% (9)
  • B
    74% (42)
  • C
    4% (2)
  • D
    7% (4)

Why each option

To optimize traffic flow between the access and distribution layer, reconfiguring Distribution Switch A to become the HSRP Active gateway is the most efficient change.

AAdd a link between access switch A and access switch B

Adding a link between access switch A and access switch B would introduce a potential loop and is not directly related to optimizing traffic flow between access and distribution layers in a hierarchical design.

BReconfigure the distribution switch A to become the HSRP ActiveCorrect

Assuming Access Switch A's default gateway uses HSRP, making Distribution Switch A the HSRP Active for its connected VLANs ensures that traffic directly exits through it, utilizing its local uplinks and avoiding the unnecessary traversal of the inter-distribution link, which is optimal for local egress in a hierarchical design.

CChange the link between distribution switch A and distribution switch B to be a routed link

Changing the link between distribution switch A and distribution switch B to a routed link is typically done to break Layer 2 loops and route between VLANs but does not directly optimize the initial flow of traffic from access to distribution by ensuring local egress.

DCreate an EtherChannel link between distribution switch A and distribution switch B

Creating an EtherChannel link between distribution switch A and distribution switch B would increase bandwidth and redundancy between them but does not address the inefficiency of traffic having to cross from one distribution switch to another if HSRP is not configured optimally for local egress.

Concept tested: HSRP optimization in campus networks

Source: https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Campus/campover.html

Topics

#HSRP#Traffic Flow Optimization#Layer 2 Design#Campus Network Redundancy
