300-420 · Question #239
Refer to the exhibit. A network engineer must design a BGP solution based on: - The route reflector must have one or more direct physical connections to the core routers (R3 and R4). - The route…
The correct answer is D. Configure R3 to be a client of R2 and R4. E. Configure R4 to be a client of R1 and R3. We want to try and centralize our Route Reflector, in this example all routers qualify to be Route Reflectors because they have at least 1 link connected to R3/R4 the core Routers. - We want to try avoid link between R1 and R2 because it's caping at 90%. - Answer A uses the…
Question
Refer to the exhibit. A network engineer must design a BGP solution based on:
- The route reflector must have one or more direct physical connections
to the core routers (R3 and R4).
- The route reflector must have full redundancy and avoid a single
point of failure.
- R2 to R1 link utilization is 90%, and the remaining links are less
than 50% utilized. Which two solutions must the design include? (Choose two.)

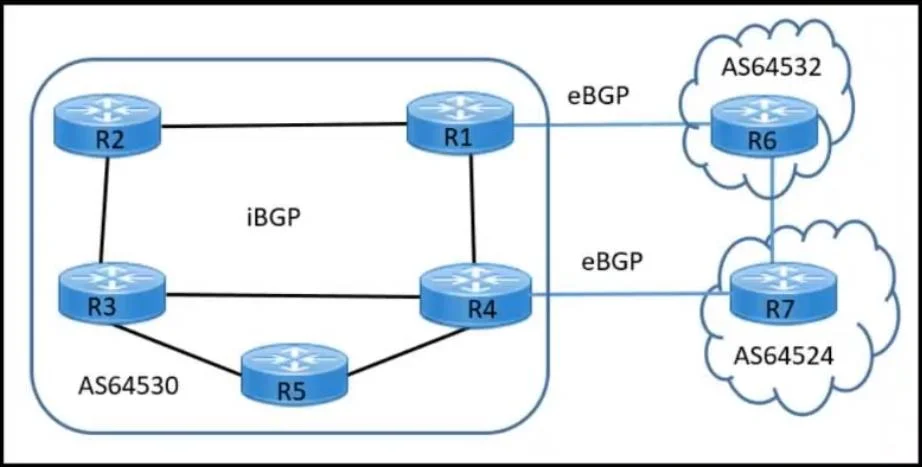

Exhibit
Options
- AConfigure R1 to be a client of R2 and R4.
- BConfigure R5 to be a client of R3 and R4
- CConfigure R2 to be a client of R1 and R4.
- DConfigure R3 to be a client of R2 and R4.
- EConfigure R4 to be a client of R1 and R3.
How the community answered
(32 responses)- A25% (8)
- B6% (2)
- C13% (4)
- D56% (18)
Explanation
We want to try and centralize our Route Reflector, in this example all routers qualify to be Route Reflectors because they have at least 1 link connected to R3/R4 the core Routers. - We want to try avoid link between R1 and R2 because it's caping at 90%. - Answer A uses the link that's 90% - Answer B is not a centralize location, R5 is way down there. - Answer C utilize the link that's at 90% - D & E both have redundancy and do not use the link that has 90% and it's centralized.
