Refer to the exhibit. Where must an architect plan for route summarization for the topology?

The correct answer is B. from the aggregation toward the core and the aggregation toward the access. The architect must identify the optimal points within a hierarchical network topology to implement route summarization to improve scalability and routing efficiency.

Advanced Enterprise Campus Networks

Question

Refer to the exhibit. Where must an architect plan for route summarization for the topology?

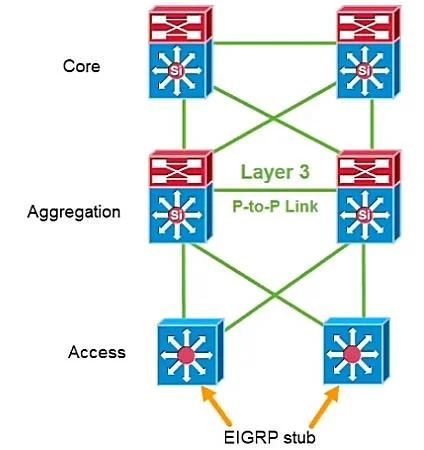

Exhibit

300-420 question #166 exhibit

Options

  • Afrom the aggregation toward the access and the access toward the aggregation
  • Bfrom the aggregation toward the core and the aggregation toward the access
  • Cfrom the core toward the aggregation and the aggregation toward the core
  • Dfrom the core toward the aggregation and the access toward the aggregation

How the community answered

(35 responses)
  • A
    9% (3)
  • B
    74% (26)
  • C
    3% (1)
  • D
    14% (5)

Why each option

The architect must identify the optimal points within a hierarchical network topology to implement route summarization to improve scalability and routing efficiency.

Afrom the aggregation toward the access and the access toward the aggregation

Summarizing from the access layer toward the aggregation layer is not typically where summarization occurs, as the access layer originates specific routes rather than summarizing them for upstream devices.

Bfrom the aggregation toward the core and the aggregation toward the accessCorrect

Route summarization should be planned from the aggregation layer toward the core layer to reduce the number of specific routes in the core's routing table. Additionally, summarizing from the aggregation layer toward the access layer provides simplified routing information to access devices, improving network efficiency and stability.

Cfrom the core toward the aggregation and the aggregation toward the core

Summarizing from the core toward the aggregation layer is generally not necessary, as the core typically handles highly aggregated routes and does not need to summarize for downstream components.

Dfrom the core toward the aggregation and the access toward the aggregation

Summarizing from the core toward the aggregation layer is not a common practice, and summarizing from the access layer toward the aggregation layer is where specific routes are seen, not where summarization for higher layers typically occurs.

Concept tested: Hierarchical network design and route summarization

Source: https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Campus/campover.html#wp1010377

Topics

#Route Summarization#Hierarchical Network Design#Aggregation Layer#Campus Network Architecture
