300-420 · Question #134
Refer to the exhibit. An engineer must design an automatic failover solution. The solution should allow HSRP to detect a WAN 1 failure and initiate an automatic failover, making router R2 the active…
The correct answer is A. Implement Enhanced Object Tracking on roster R1 C. Implement IP SLA on router R1. To enable HSRP to automatically failover to R2 when WAN 1 on R1 fails, an engineer should implement IP SLA on R1 to monitor WAN 1 and then use Enhanced Object Tracking to link the IP SLA status to the HSRP priority.
Question
Refer to the exhibit. An engineer must design an automatic failover solution. The solution should allow HSRP to detect a WAN 1 failure and initiate an automatic failover, making router R2 the active HSRP router. Which two solutions should the engineer choose? (Choose two.)

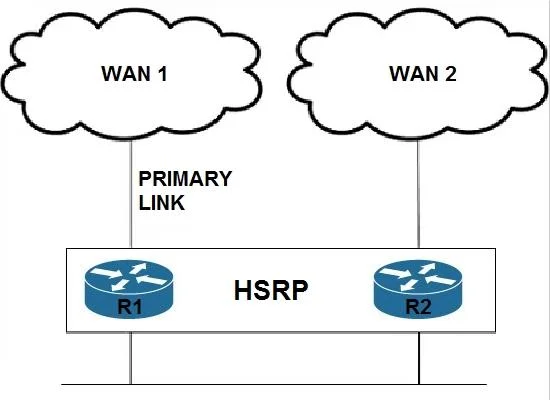

Exhibit
Options
- AImplement Enhanced Object Tracking on roster R1
- Buse a floating static route
- CImplement IP SLA on router R1
- DImplement PBR on router R1
- Euse IP source routing
How the community answered
(28 responses)- A79% (22)
- B7% (2)
- D11% (3)
- E4% (1)
Why each option
To enable HSRP to automatically failover to R2 when WAN 1 on R1 fails, an engineer should implement IP SLA on R1 to monitor WAN 1 and then use Enhanced Object Tracking to link the IP SLA status to the HSRP priority.
Implementing Enhanced Object Tracking on router R1 allows the HSRP group's priority to be dynamically reduced when a tracked object, such as the WAN 1 connection's state, changes, thereby triggering an HSRP failover.
Using a floating static route is a routing mechanism for specific prefix failover and does not directly integrate with HSRP to trigger its active/standby state transition based on an interface failure.
Implementing IP SLA (IP Service Level Agreement) on router R1 enables active monitoring of the WAN 1 connection's reachability or performance. The state of this IP SLA operation can then be tracked by Enhanced Object Tracking to influence HSRP priority.
Implementing PBR (Policy Based Routing) routes traffic based on defined policies but does not provide a mechanism to detect WAN link failure and trigger an HSRP state change.
IP source routing is a deprecated and insecure routing option that has no relevance to HSRP failover based on WAN link failures.
Concept tested: HSRP failover with IP SLA and object tracking
Source: https://www.cisco.com/c/en/us/td/docs/ios/ipapp/configuration/guide/ip_sla.html#concept_A2BB405C72224095861110ADBE4D5B18
Topics
Community Discussion
No community discussion yet for this question.
