2V0-621 · Question #212
An administrator has recently configured HA on a cluster. After reviewing the summary tab on one of the hosts, the warning in Exhibit 1 is displayed: The administrator proceeds to view the…
The correct answer is A. Move vmnic1 to Standby adapters. D. Uncheck the Override Failover Checkbox on the management network port group. vSphere HA requires redundant management network paths and warns when only one physical NIC backs the management vmkernel port. Fixing this requires both a physical standby adapter and removing any port group override that limits failover to a single NIC.
Question
An administrator has recently configured HA on a cluster. After reviewing the summary tab on one of the hosts, the warning in Exhibit 1 is displayed:
The administrator proceeds to view the management network port group data shown in Exhibit 2:

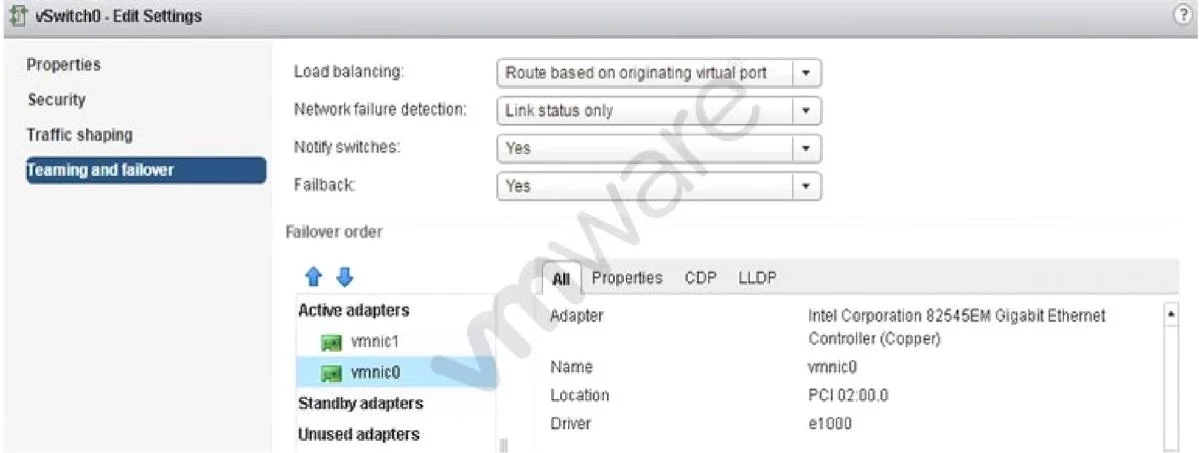

The administrator then views the management network vSwitch as shown in Exhibit 3:
Based on the exhibits, which two steps should be taken to ensure redundancy on the management network? (Choose two.)
Exhibit
Options
- AMove vmnic1 to Standby adapters.
- BAdd an additional vmknic to the Network Adapters and move it to Active adapters.
- CSet the advanced HA configuration parameter das.ignoreRedundantNetWarning to True.
- DUncheck the Override Failover Checkbox on the management network port group.
How the community answered
(50 responses)- A70% (35)
- B20% (10)
- C10% (5)
Why each option
vSphere HA requires redundant management network paths and warns when only one physical NIC backs the management vmkernel port. Fixing this requires both a physical standby adapter and removing any port group override that limits failover to a single NIC.
Moving vmnic1 to Standby adapters on the management network provides a physical failover path so that if the active NIC fails, the management vmkernel traffic can continue over the standby, satisfying HA's redundancy requirement.
Adding an additional vmknic creates a second software VMkernel interface but does not provide physical NIC redundancy if only one physical uplink backs the vSwitch, leaving the single point of failure in place.
Setting das.ignoreRedundantNetWarning to true suppresses the HA alarm without correcting the underlying absence of physical NIC redundancy, which is not an acceptable resolution for production HA deployments.
Unchecking the Override Failover checkbox on the management network port group removes the port group-level override and allows it to inherit the vSwitch NIC teaming policy, which includes both active and standby adapters and restores the redundant path that HA requires.
Concept tested: vSphere HA management network redundancy and NIC failover
Source: https://docs.vmware.com/en/VMware-vSphere/7.0/com.vmware.vsphere.avail.doc/GUID-E0161CB5-BD3F-425F-A7E0-BF83B005FECA.html
Topics
Community Discussion
No community discussion yet for this question.
