Refer to the exhibit. Router R1 is added to the network and configured with the 10.0.0.64/26 and 10.0.20.0/26 subnets. However, traffic destined for the LAN on R3 is not accessible. Which command when
The correct answer is D. ip route 10.0.15.0 255.255.255.0 10.0.20.3. We need to specify the destination network (10.0.15.0/24) and the next hop IP of the router to get to that network (10.0.20.3).
Submitted by parkjh· Mar 5, 2026IP Connectivity
Question

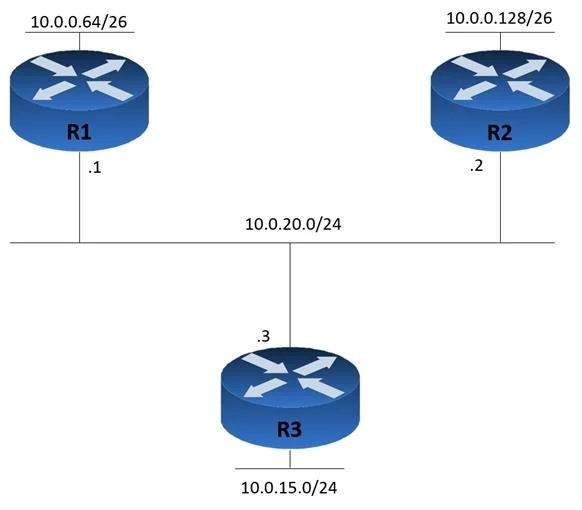

Refer to the exhibit. Router R1 is added to the network and configured with the 10.0.0.64/26 and 10.0.20.0/26 subnets. However, traffic destined for the LAN on R3 is not accessible. Which command when executed on R1 defines a static route to reach the R3 LAN?
Exhibits
Options
- Aip route 10.0.0.64 255.255.255.192 10.0.20.3
- Bip route 10.0.15.0 255.255.255.0 10.0.20.1
- Cip route 10.0.15.0 255.255.255.192 10.0.20.1
- Dip route 10.0.15.0 255.255.255.0 10.0.20.3
How the community answered
(35 responses)- A17% (6)
- B6% (2)
- C11% (4)
- D66% (23)
Explanation
We need to specify the destination network (10.0.15.0/24) and the next hop IP of the router to get to that network (10.0.20.3).
Topics
#Static routing#Cisco IOS routing#Subnetting#IP addressing
